Compact 5000 3 Wire DC Input Module
SKU: 5069-IB6F-3W
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:

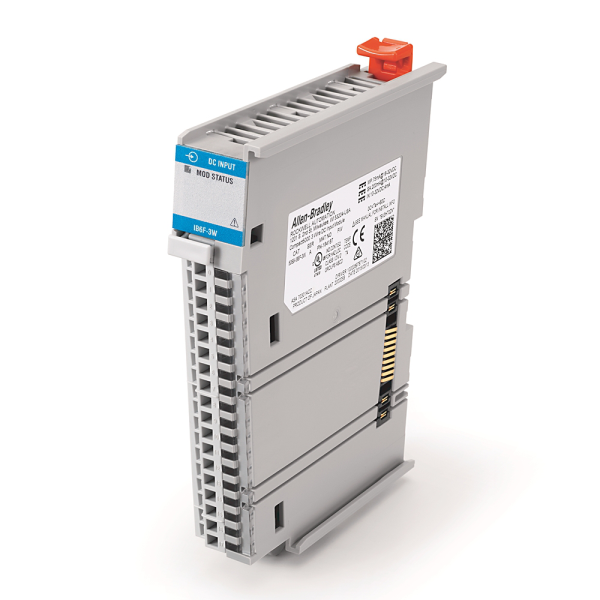

Allen-Bradley's 5069-IB6F-3W is a Compact 5000 DC input module intended primarily for use with three-wire source sensors.
It has six digital input channels, each capable of receiving signals from proximity sensors, photoelectric sensors, and other active field components that require a separate power, ground, and signal line.
This module is suited for high-speed and high-reliability applications that need precision signal capture.
It provides quick input response, individual channel diagnostics, and status LEDs for simple troubleshooting.
Integrated sensor power makes wiring easier and avoids the need for additional power supplies.
It is part of the Compact 5000 I/O platform and integrates seamlessly with the CompactLogix 5380 and GuardLogix 5380 controllers. Studio 5000 Logix Designer is used for configuration.
Buy currently uses Select Automation shop pricing and checkout.
Electrical Specifications:
Input Channels: 6.
Input Type: DC digital, designed for 3-wire sourcing sensors.
Nominal Voltage: 24V DC.
Voltage Range: 10–30V DC.
Input Delay: Typically, <1 ms (configurable via Studio 5000).
Sensor Power Supply: Integrated 24V DC sourcing for connected sensors.
Input Current: Approx. 2.5 mA per channel at 24V DC.
Isolation:
Channel-to-backplane: Yes.
Channel-to-channel: Yes.
Physical & Mechanical:
Form Factor: Compact 5000 standard module size.
Mounting: DIN rail via Compact 5000 chassis.
Status Indicators:
Individual LEDs for each input channel.
Module status LED.
System Integration:
Compatible Controllers:
CompactLogix 5380.
GuardLogix 5380.
Configuration Software: Studio 5000 Logix Designer.
Diagnostics:
Open circuit detection.
Short circuit detection.
Overvoltage protection.
Environmental Ratings:
Operating Temperature: –20°C to +65°C.
Storage Temperature: –40°C to +85°C.
Humidity: 5% to 95%, non-condensing.
Shock Resistance: 30g.
Vibration Resistance: 10–500 Hz, 2g.
