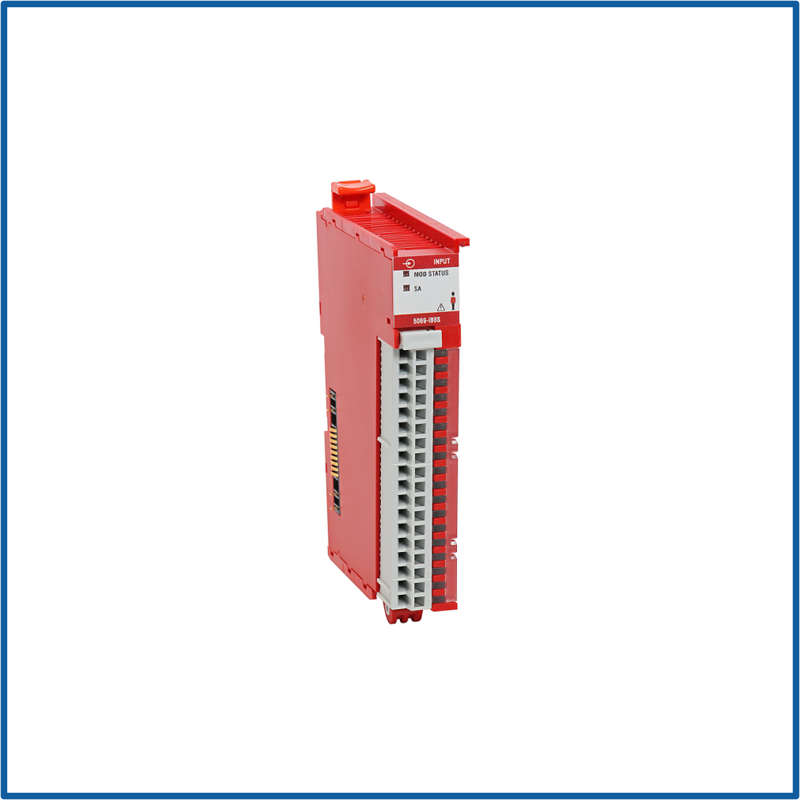

Compact5000 DC Safety Input Module
SKU: 5069-IB8S
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The 5069-IB8S is an 8-channel DC safety-rated input module from Rockwell Automation's Compact 5000 I/O line, designed for use in SIL 2 (Safety Integrity Level 2) and PLd (Performance Level d)-compliant applications.
It picks up digital signals from safety equipment such emergency stops buttons, safety gates, light curtains, and interlock switches.
This module, designed to interface with Compact GuardLogix 5380 controllers, provides integrated safety and standard control on a single platform.
It has advanced diagnostics, fault detection, and timestamping capabilities that enable real-time safety monitoring and troubleshooting.
Key features:
There are eight safety-rated DC input channels.
Voltage range: 10-30V DC source inputs.
Supports SIL 2 and PLd functional safety compliance.
Advanced diagnostics include open/short circuit detection and cross-channel monitoring.
Event timestamping enables exact safety analysis.
Individual channel status is shown by LED indicators.
DIN rail mounting allows for more compact installation.
Compatible with the Studio 5000 Logix Designer (Safety Editor).
Designed for work with the Compact GuardLogix 5380 controllers.
Buy currently uses Select Automation shop pricing and checkout.
Technical Specifications:
Series: Compact 5000 I/O.
Catalogue Number: 5069-IB8S.
Type: DC Safety Digital Input Module.
Number of Inputs: 8 safety-rated inputs.
Input Voltage Range: 10–30V DC.
Input Type: Sourcing (positive logic).
Safety Ratings:
SIL 2 (Safety Integrity Level 2).
PLd (Performance Level d).
Certified by TÜV for use in safety applications.
Diagnostics:
Open circuit detection.
Short circuit detection.
Cross-channel monitoring.
Timestamping of input events.
Status Indicators:
Individual LEDs for each input channel.
Diagnostic indicators for fault conditions.
Isolation:
Channel-to-backplane isolation.
Group isolation for field-side protection.
Power Supply: 24V DC.
Mounting Type: DIN rail.
Dimensions: Matches standard 5069 I/O module footprint.
Programming Software: Studio 5000 Logix Designer (Safety Editor required).
Environmental Ratings:
Operating Temperature: -20°C to +60°C.
Storage Temperature: -40°C to +85°C.
Relative Humidity: 5% to 95% non-condensing.
Certifications: CE, UL, cUL, TÜV, RoHS.
