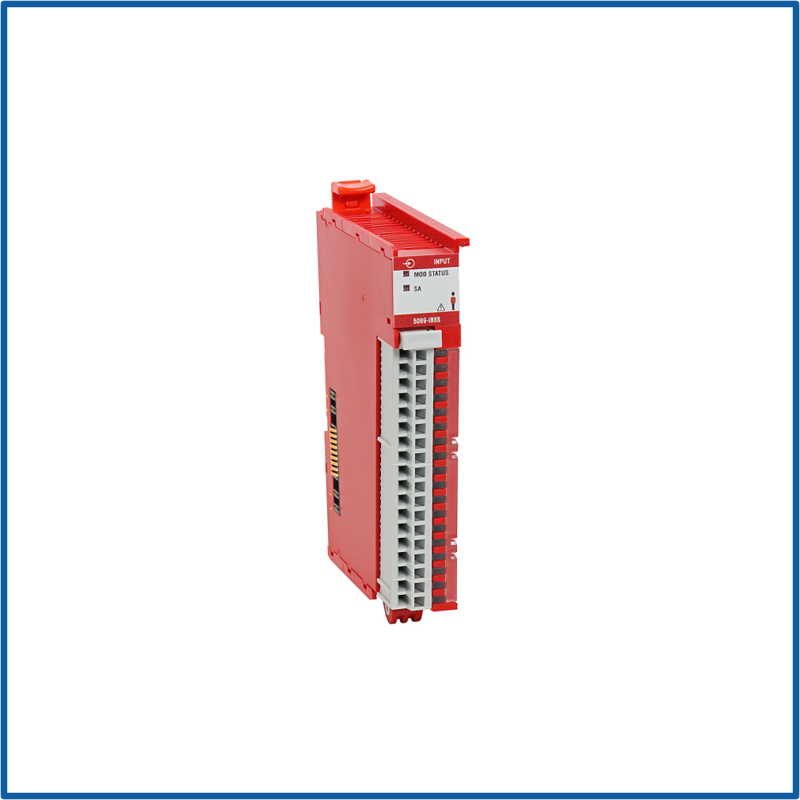

Compact5000 DC Safety Input Module
SKU: 5069-IB8SK
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The 5069-IB8SK is an 8-channel DC safety-rated input module from Rockwell Automation's Compact 5000 I/O line, intended for use in safety-critical applications that must meet SIL 2 / PLd functional safety criteria.
The "K" suffix denotes that the module has conformal coating, which provides further protection against moisture, dust, and corrosive contaminants—ideal for tough industrial situations.
This module picks up digital signals from safety devices such emergency stop buttons, safety gates, light curtains, and interlock switches.
It is used with Compact GuardLogix 5380 controllers to provide integrated safety and standard control on a single platform.
The module also has comprehensive diagnostics and timestamping for accurate safety monitoring and troubleshooting.
Buy currently uses Select Automation shop pricing and checkout.
Technical Specifications:
Series: Compact 5000 I/O.
Catalog Number: 5069-IB8SK.
Type: DC Safety Digital Input Module.
Number of Inputs: 8 safety-rated inputs.
Input Voltage Range: 10–30V DC.
Input Type: Sourcing (positive logic).
Safety Ratings:
SIL 2 (Safety Integrity Level 2).
PLd (Performance Level d).
Certified by TÜV for use in functional safety applications.
Diagnostics:
Open circuit detection.
Short circuit detection.
Cross-channel monitoring.
Timestamping of input events.
Conformal Coating: Yes (indicated by “K” suffix).
Status Indicators:
Individual LEDs for each input channel.
Diagnostic indicators for fault conditions.
Isolation:
Channel-to-backplane isolation.
Group isolation for field-side protection.
Power Supply: 24V DC.
Mounting Type: DIN rail.
Dimensions: Matches standard 5069 I/O module footprint.
Programming Software: Studio 5000 Logix Designer (Safety Editor required).
Environmental Ratings:
Operating Temperature: -20°C to +60°C.
Storage Temperature: -40°C to +85°C.
Relative Humidity: 5% to 95% non-condensing.
Certifications: CE, UL, cUL, TÜV, RoHS.
