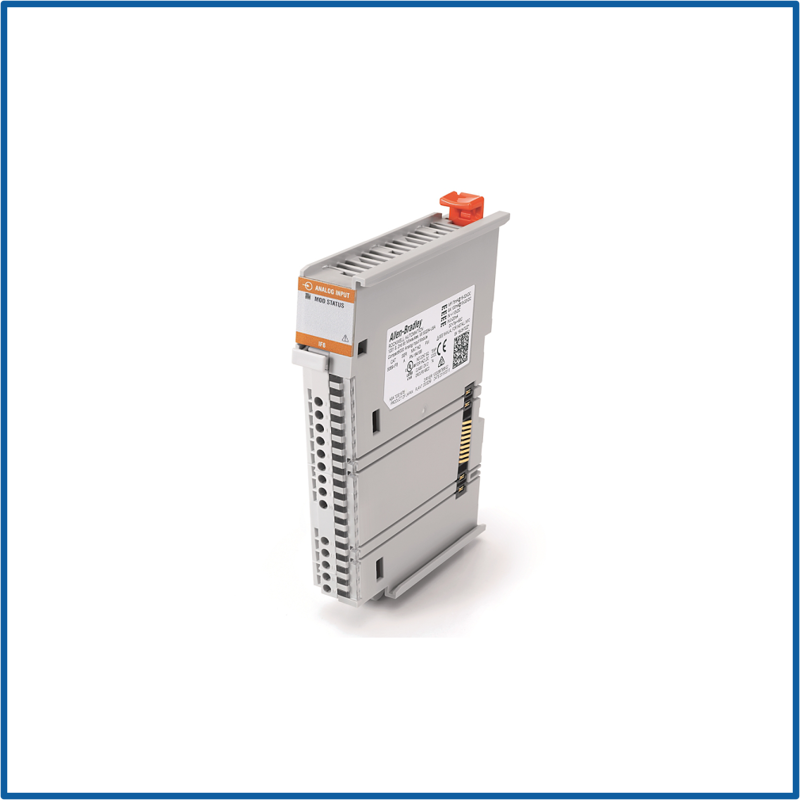

Compact 5000 Analog Input Module
SKU: 5069-IF8
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The 5069-IF8 is an 8-channel analogue input module from Rockwell Automation's Compact 5000 I/O family, intended to connect to analogue field devices such temperature sensors, pressure transducers, flow meters, and other instrumentation.
It can handle both voltage and current input signals, making it ideal for industrial automation and process control applications.
This module is designed for use with the CompactLogix 5380 and GuardLogix 5380 controllers, providing high-resolution data gathering, advanced diagnostics, and quick reaction times.
It allows for accurate monitoring of analogue signals and integrates effortlessly into dispersed control systems.
Buy currently uses Select Automation shop pricing and checkout.
Technical Specifications:
Series: Compact 5000 I/O.
Catalogue Number: 5069-IF8.
Type: Analog Input Module.
Number of Channels: 8 differential analogue inputs.
Supported Signal Types:
Voltage: ±10V, 0–10V, 0–5V.
Current: 0–20 mA, 4–20 mA.
Resolution: 16-bit.
Accuracy: ±0.1% of full scale (typical).
Input Impedance:
Voltage: >1 MΩ.
Current: ~250 Ω.
Isolation:
Channel-to-backplane isolation.
Group isolation for field-side protection.
Diagnostics:
Open circuit detection.
Overrange/under range indication.
Status Indicators:
LED indicators for module and channel health.
Power Supply: 24V DC.
Mounting Type: DIN rail.
Dimensions: Matches standard 5069 I/O module footprint.
Programming Software: Studio 5000 Logix Designer.
Environmental Ratings:
Operating Temperature: -20°C to +60°C.
Storage Temperature: -40°C to +85°C.
Relative Humidity: 5% to 95% non-condensing.
Certifications: CE, UL, cUL, RoHS.
