Compact 5000 UniversalAnalog InputModule
SKU: 5069-IY4
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:

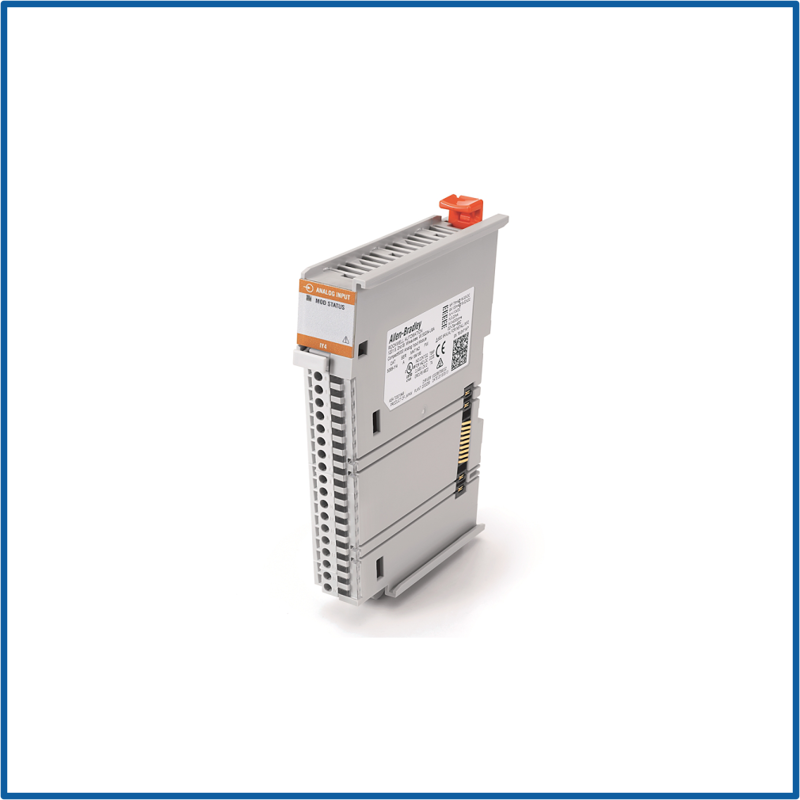

The 5069-IY4 is a four-channel universal analogue input module from Rockwell Automation's Compact 5000 I/O line that can handle a wide range of analogue signals from field devices.
Each channel is individually adjustable, allowing the module to accept voltage, current, thermocouple, or RTD inputs, making it a highly adaptable option for process control and measurement.
This module is appropriate for applications that require many signal kinds, such as temperature monitoring, pressure sensing, and flow measurement.
It effortlessly connects with the CompactLogix 5380 and GuardLogix 5380 controllers, providing high-resolution data collecting, built-in diagnostics, and reliable environmental protection.
Buy currently uses Select Automation shop pricing and checkout.
Technical Specifications:
Catalogue Number: 5069-IY4.
Series: Compact 5000 I/O.
Type: Universal Analog Input Module.
Number of Channels: 4 individually configurable analogue inputs.
Supported Input Types:
Voltage: ±10V, 0–10V, 0–5V.
Current: 0–20 mA, 4–20 mA.
Millivolt: ±100 mV.
Thermocouple: B, C, D, E, J, K, L (TXK/XK), N, R, S, T.
RTD: Pt100, Pt1000, Ni100, Ni1000, Cu427.
RTD Resistance Ranges:
1–500 Ω.
2–1000 Ω.
4–2000 Ω.
8–4000 Ω.
Resolution: 24-bit Sigma-Delta ADC.
Accuracy @ 25°C: ±0.1% of full scale (typical).
Temperature Drift:
Voltage: ±0.2%.
Current: ±0.3%.
RTD: ±0.2%.
Thermocouple: ±0.2%.
Scan Time:
Per Channel: 625 µs.
Per Group: 2.5 ms.
Power Dissipation:
Voltage/Millivolt: 1.8 W.
Current/RTD: 2.1 W.
Diagnostics:
Open circuit detection.
Overrange/under range indication.
Cold junction compensation (for thermocouples).
Status Indicators: LED indicators for module and channel health.
Mounting Type: DIN rail.
Dimensions: 138 x 22 x 105 mm (5.4 x 0.9 x 4.2 in).
Weight: 0.39 lbs (175 g).
Power Supply: 24V DC.
Programming Software: Studio 5000 Logix Designer.
Environmental Ratings:
Operating Temperature: -20°C to +60°C.
Storage Temperature: -40°C to +85°C.
Relative Humidity: 5% to 95% non-condensing.
Certifications: CE, UL, cUL, RoHS.
