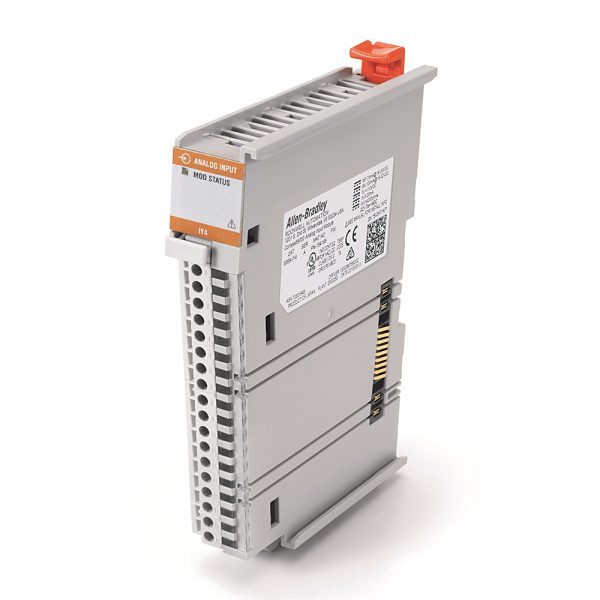

Compact 5000 UniversalAnalog InputModule
SKU: 5069-IY4K
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The 5069-IY4K is a 4-channel universal analogue input module from the Compact 5000 I/O series that supports a variety of analogue signal types such as voltage, current, thermocouple, and RTD inputs.
This adaptability makes it perfect for applications that require mixed analogue sensing, such as temperature, pressure, flow, and position monitoring, without requiring separate modules for each signal type.
The suffix "K" refers to conformal coating, which protects the module's internal circuitry from moisture, dust, and corrosive conditions.
This makes it ideal for severe industrial environments such as food processing, chemical facilities, and outdoor installations.
It works flawlessly with the CompactLogix 5380 and GuardLogix 5380 controllers and is set up using Studio 5000 Logix Designer.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Channels: 4 universal analogue inputs.
Supported Signal Types:
Voltage: ±10V, 0–10V, 0–5V.
Current: 0–20 mA, 4–20 mA.
Thermocouple: J, K, T, E, R, S, B, N.
RTD: PT100, PT1000.
Resolution: 16-bit.
Accuracy: ±0.1% of full scale (typical).
Input Impedance:
Voltage: >1 MΩ.
Current: 250 Ω.
Isolation: Channel-to-channel and channel-to-backplane.
Status Indicators: Individual LEDs per channel.
Diagnostics: Open circuit, short circuit, over/under-range detection.
Conformal Coating: Yes (“K” variant).
Mounting: DIN rail via Compact 5000 chassis.
Configuration Software: Studio 5000 Logix Designer.
Environmental Ratings:
Operating Temperature: –20°C to +65°C.
Storage Temperature: –40°C to +85°C.
Humidity: 5% to 95%, non-condensing.
Shock Resistance: 30g.
Vibration Resistance: 10–500 Hz, 2g.
