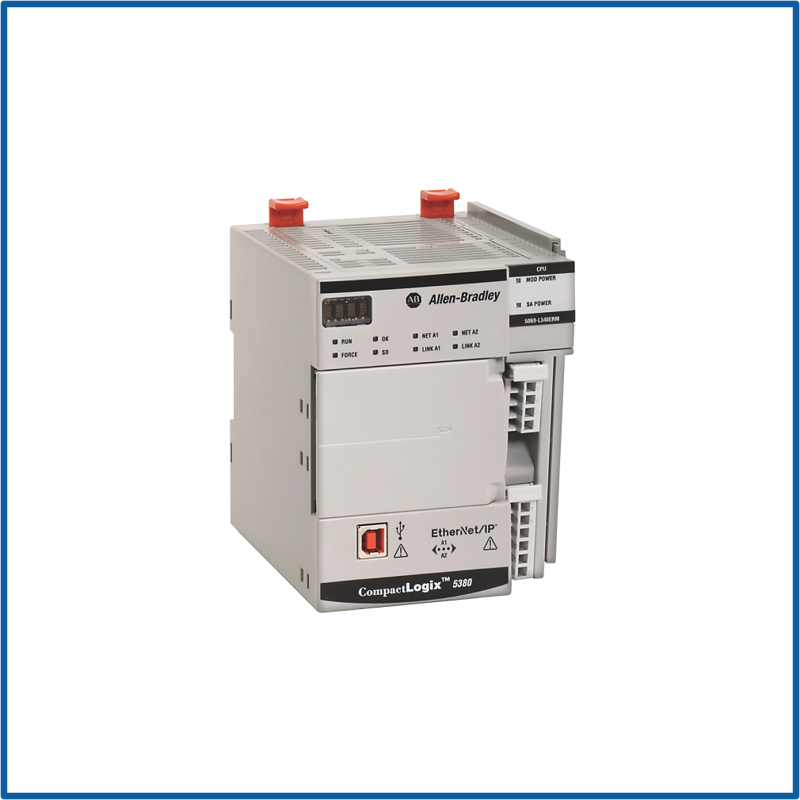

CompactLogix 600KB Enet MotionController
SKU: 5069-L306ERM
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The 5069-L306ERM is a high-performance CompactLogix 5380 controller intended for applications requiring integrated motion control over EtherNet/IP.
With 600 KB of user memory, dual Gigabit Ethernet ports, and support for up to 16 motion axes, this controller is suitable for medium-sized automation systems that require speed, precision, and scalability.
It is part of Rockwell Automation's CompactLogix 5380 family, which provides increased processing power, greater I/O responsiveness, and seamless connection with safety and standard control.
The suffix "ERM" stands for Ethernet for Remote Motion, signifying that it can handle motion devices such as servo drives and actuators via the CIP Motion protocol.
Buy currently uses Select Automation shop pricing and checkout.
Technical Specifications:
Catalog Number: 5069-L306ERM.
Series: CompactLogix 5380.
Controller Type: Integrated Ethernet/IP Motion Controller.
User Memory: 600 KB.
I/O Capacity:
Local: Up to 31 Compact 5000 I/O modules.
Remote: Up to 256 EtherNet/IP nodes.
Motion Support:
Up to 16 axes over EtherNet/IP.
Uses CIP Motion protocol.
Ethernet Ports:
Dual 1 Gb embedded Ethernet ports.
Supports Device Level Ring (DLR) and Linear topologies.
Communication Protocols:
EtherNet/IP.
CIP Sync.
CIP Safety (with GuardLogix configuration).
Programming Software: Studio 5000 Logix Designer.
Safety Integration: Compatible with Guard I/O and safety devices.
Power Supply: 24V DC.
Mounting Type: DIN rail.
Status Indicators: LED indicators for module health and communication.
Environmental Ratings:
Operating Temperature: -20°C to +60°C.
Storage Temperature: -40°C to +85°C.
Relative Humidity: 5% to 95% non-condensing.
Certifications: CE, UL, cUL, RoHS, and others depending on region.
Dimensions: Matches standard CompactLogix 5380 footprint.
Weight: Approx. 0.5 kg (varies slightly by configuration).
