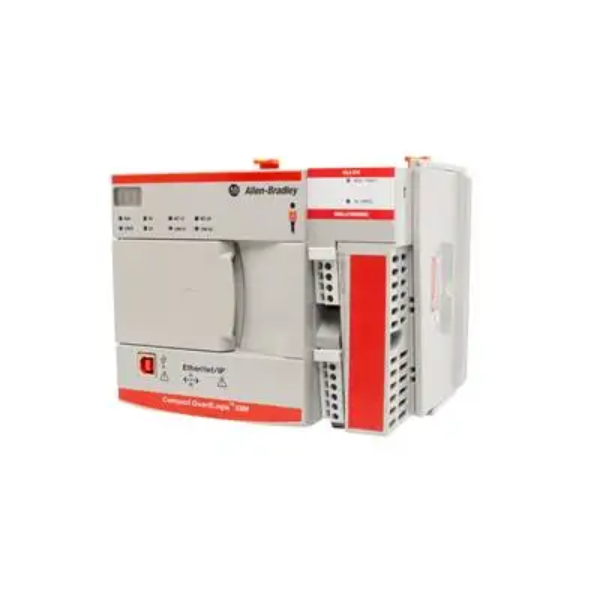

Compact GuardLogix SIL3 0.6/0.3M Motion
SKU: 5069-L306ERMS3
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The 5069-L306ERMS3 is a Compact GuardLogix 5380 safety-rated controller intended for medium-sized applications that require both standard control and integrated safety with motion capabilities.
It has 0.6 MB of ordinary user memory, 0.3 MB of safety memory, and supports SIL 3 and PLe safety functionalities.
This controller is suited for applications requiring coordinated motion control, high-speed I/O, and safety compliance, such as packing, material handling, and assembly.
It supports Integrated Motion over EtherNet/IP, which allows for accurate control of servo motors and axes.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Standard User Memory: 0.6 MB.
Safety Memory: 0.3 MB.
Safety Rating: SIL 3 / PLe (IEC 61508, ISO 13849-1).
Motion Support: Integrated Motion over EtherNet/IP.
Axes Supported: Up to 16 axes.
Communication Ports:
2 × EtherNet/IP ports (embedded switch for Device Level Ring).
I/O Capacity: Supports Compact 5000 I/O modules.
Programming Software: Studio 5000 Logix Designer.
Backplane Communication: 50 Mbps.
Conformal Coating: Yes (for enhanced environmental protection).
Real-Time Clock: Integrated.
SD Card Support: Optional for backup and restore.
Power Requirements: 24 VDC input.
Environmental Ratings:
Operating Temperature: –20°C to +65°C.
Storage Temperature: –40°C to +85°C.
Humidity: 5% to 95%, non-condensing.
Shock Resistance: 30g.
Vibration Resistance: 10–500 Hz, 2g.
