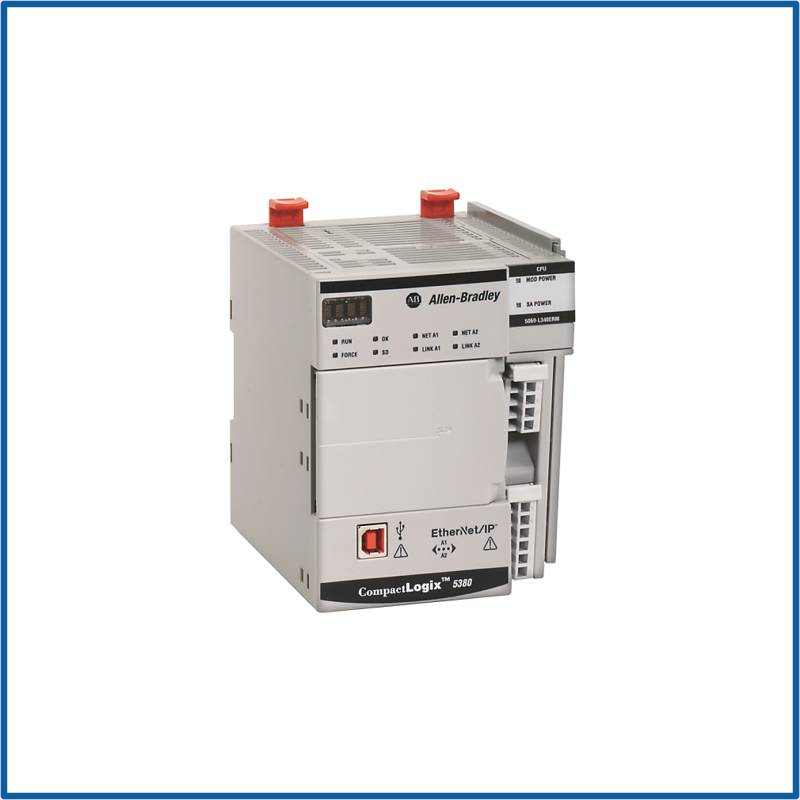

CompactLogix 10MB Enet Motion Controller
SKU: 5069-L3100ERM
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The 5069-L3100ERM is a top-tier Rockwell Automation CompactLogix 5380 controller designed for high-performance motion control and large-scale automation.
With 10 MB of user memory, this controller can handle complicated logic, large amounts of data, and high-speed processing, making it ideal for demanding industrial applications.
The "ERM" suffix stands for Ethernet Remote Motion, suggesting that it can control up to 32 motion axes via EtherNet/IP utilizing the CIP Motion Protocol.
It has two inbuilt Gigabit Ethernet ports that support strong network topologies such as Device Level Ring (DLR), Linear, and Star.
This controller works smoothly with Kinetix servo drives, Guard I/O, and other EtherNet/IP devices, allowing for standard and safety control in a unified architecture.
Buy currently uses Select Automation shop pricing and checkout.
Technical Specifications:
Catalogue Number: 5069-L3100ERM.
Series: CompactLogix 5380.
Controller Type: Integrated Ethernet/IP Motion Controller.
User Memory: 10 MB.
I/O Capacity:
Local: Up to 31 Compact 5000 I/O modules.
Remote: Up to 256 EtherNet/IP nodes.
Motion Control:
Supports up to 32 axes over EtherNet/IP.
Uses CIP Motion protocol.
Ethernet Ports:
Dual embedded 1 Gb Ethernet ports.
Supports Device Level Ring (DLR), Linear, and Star topologies.
Communication Protocols:
EtherNet/IP.
CIP Sync.
CIP Safety (with GuardLogix configuration).
Safety Integration:
Compatible with Guard I/O and safety devices.
Supports integrated safety control.
Programming Software: Studio 5000 Logix Designer.
Power Supply: 24V DC.
Mounting Type: DIN rail.
Status Indicators: LED indicators for module health and communication.
Environmental Ratings:
Operating Temperature: -20°C to +60°C.
Storage Temperature: -40°C to +85°C.
Relative Humidity: 5% to 95% non-condensing.
Certifications: CE, UL, cUL, RoHS.
Dimensions: Matches standard CompactLogix 5380 footprint.
Weight: Approx. 0.5 kg (varies slightly by configuration).
