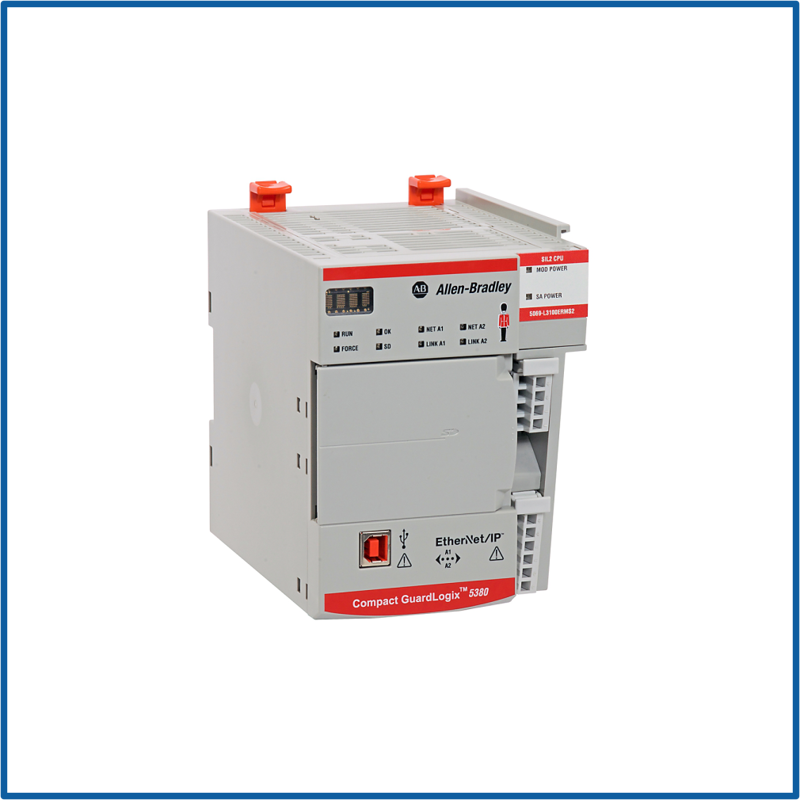

Compact GuardLogix SIL2 10.0/5.0M Motion
SKU: 5069-L3100ERMS2
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The 5069-L3100ERMS2 is a high-performance Compact GuardLogix 5380 controller intended for use in applications that require both integrated safety and accurate motion control.
With 10 MB of ordinary memory and 5 MB of specialized safety memory, it can handle complicated automation tasks while meeting SIL2 / PLd functional safety requirements.
This controller is perfect for coordinated robotics, packing, and high-speed assembly systems since it uses CIP Motion to offer synchronized motion for up to 32 axes across EtherNet/IP.
The "S2" designation verifies its SIL2 certification, allowing it to manage safety-critical operations with standard control in a single architecture.
It has dual embedded Gigabit Ethernet ports that enable topologies like as Device Level Ring (DLR), Linear, and Star, and it works flawlessly with Guard I/O, Kinetix servo drives, and other EtherNet/IP devices.
Buy currently uses Select Automation shop pricing and checkout.
Technical Specifications:
Catalogue Number: 5069-L3100ERMS2.
Series: Compact GuardLogix 5380.
Controller Type: Integrated Safety + Motion Controller.
Standard Memory: 10 MB.
Safety Memory: 5 MB.
Safety Certification:
SIL2 (Safety Integrity Level 2).
PLd (Performance Level d).
TÜV certified.
Motion Control:
Up to 32 axes over EtherNet/IP.
CIP Motion protocol.
I/O Capacity:
Local: Up to 31 Compact 5000 I/O modules.
Remote: Up to 256 EtherNet/IP nodes.
Ethernet Ports:
Dual embedded 1 Gb Ethernet ports.
Supports Device Level Ring (DLR), Linear, and Star topologies.
Communication Protocols:
EtherNet/IP.
CIP Sync.
CIP Safety.
Programming Software: Studio 5000 Logix Designer (with Safety Editor).
Power Supply: 24V DC.
Mounting Type: DIN rail.
Status Indicators: LED indicators for module health, safety, and communication.
Environmental Ratings:
Operating Temperature: -20°C to +60°C.
Storage Temperature: -40°C to +85°C.
Relative Humidity: 5% to 95% non-condensing.
Certifications: CE, UL, cUL, RoHS, TÜV.
Dimensions: Matches standard CompactLogix 5380 footprint.
Weight: Approx. 0.5 kg (varies slightly by configuration).
