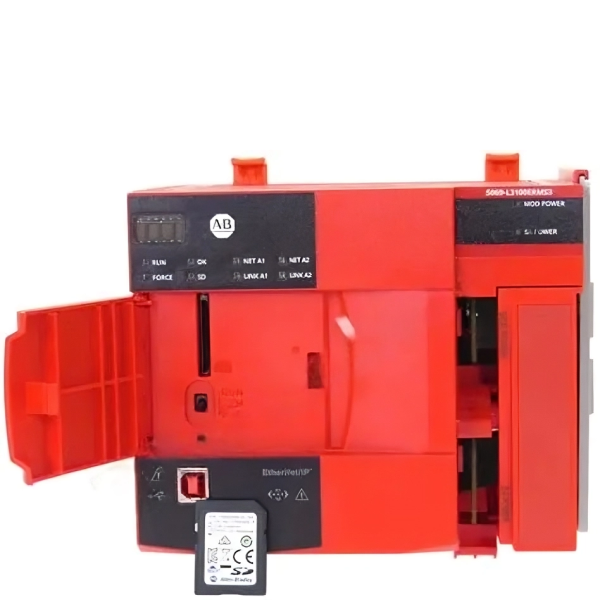

Compact GuardLogix SIL3 10.0/5.0M Motion
SKU: 5069-L3100ERMS3
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The 5069-L3100ERMS3 is a high-performance Compact GuardLogix 5380 safety-rated controller developed for large-scale applications that require both standard control and integrated safety, as well as sophisticated motion capabilities.
It has 10 MB of ordinary user memory and 5 MB of safety memory, making it suitable for high-performance applications such as automobile assembly, robotics, and coordinated multi-axis motion control.
This controller supports Integrated Motion over EtherNet/IP for up to 80 axes and has twin integrated EtherNet/IP ports that support the Device Level Ring (DLR) topology.
It is programmed with Studio 5000 Logix Designer, which allows for unified construction of safety and standard logic.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Standard User Memory: 10 MB.
Safety Memory: 5 MB.
Safety Rating: SIL 3 / PLe (IEC 61508, ISO 13849-1).
Motion Support: Integrated Motion over EtherNet/IP.
Axes Supported: Up to 80 axes.
Communication Ports:
2 × EtherNet/IP ports (embedded switch, DLR support).
I/O Capacity: Supports Compact 5000 I/O modules.
Backplane Communication: 50 Mbps.
Real-Time Clock: Integrated.
SD Card Support: Optional for backup and restore.
Conformal Coating: Yes.
Power Requirements: 24 VDC input.
Programming Software: Studio 5000 Logix Designer.
Environmental Ratings:
Operating Temperature: –20°C to +65°C.
Storage Temperature: –40°C to +85°C.
Humidity: 5% to 95%, non-condensing.
Shock Resistance: 30g.
Vibration Resistance: 10–500 Hz, 2g.
