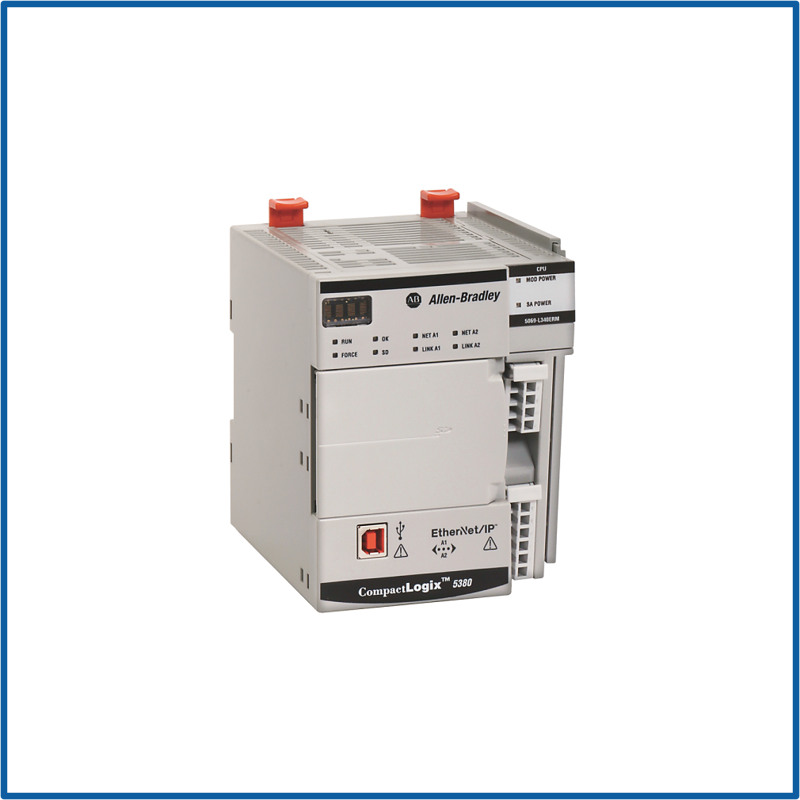

CompactLogix 1MB No Cap Enet Controller
SKU: 5069-L310ER-NSE
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The 5069-L310ER-NSE is a mid-range CompactLogix 5380 controller intended for industrial automation systems that demand high-speed Ethernet connection and scalable I/O but lack stored energy components.
The "NSE" designation stands for No Stored Energy, which means that this model does not use capacitor-based energy retention, making it appropriate for circumstances where stored energy is limited or external backup systems are preferred.
With 1 MB of user memory, it can handle modest logic complexity and quick I/O response.
Dual integrated Gigabit Ethernet ports support strong network topologies such as Device Level Ring (DLR), Linear, and Star.
It works easily with Compact 5000 I/O modules and can support up to 256 EtherNet/IP nodes, making it a dependable solution for distributed control systems.
Buy currently uses Select Automation shop pricing and checkout.
Technical Specifications:
Catalogue Number: 5069-L310ER-NSE.
Series: CompactLogix 5380.
Controller Type: Standard Ethernet Controller (No Stored Energy).
User Memory: 1 MB.
I/O Capacity:
Local: Up to 31 Compact 5000 I/O modules.
Remote: Up to 256 EtherNet/IP nodes.
Ethernet Ports:
Dual embedded 1 Gb Ethernet ports.
Supports Device Level Ring (DLR), Linear, and Star topologies.
Communication Protocols:
EtherNet/IP.
CIP Sync.
Motion Support: Not supported.
Safety Support: Not supported.
Stored Energy: No capacitor-based energy retention (NSE variant).
Removable Storage: SD card slot for program backup and data logging.
Programming Software: Studio 5000 Logix Designer.
Power Supply: 24V DC.
Mounting Type: DIN rail.
Status Indicators: LED indicators for module health and communication.
Environmental Ratings:
Operating Temperature: -20°C to +60°C.
Storage Temperature: -40°C to +85°C.
Relative Humidity: 5% to 95% non-condensing.
Certifications: CE, UL, cUL, RoHS.
Dimensions: Matches standard CompactLogix 5380 footprint.
Weight: Approx. 0.5 kg (varies slightly by configuration).
