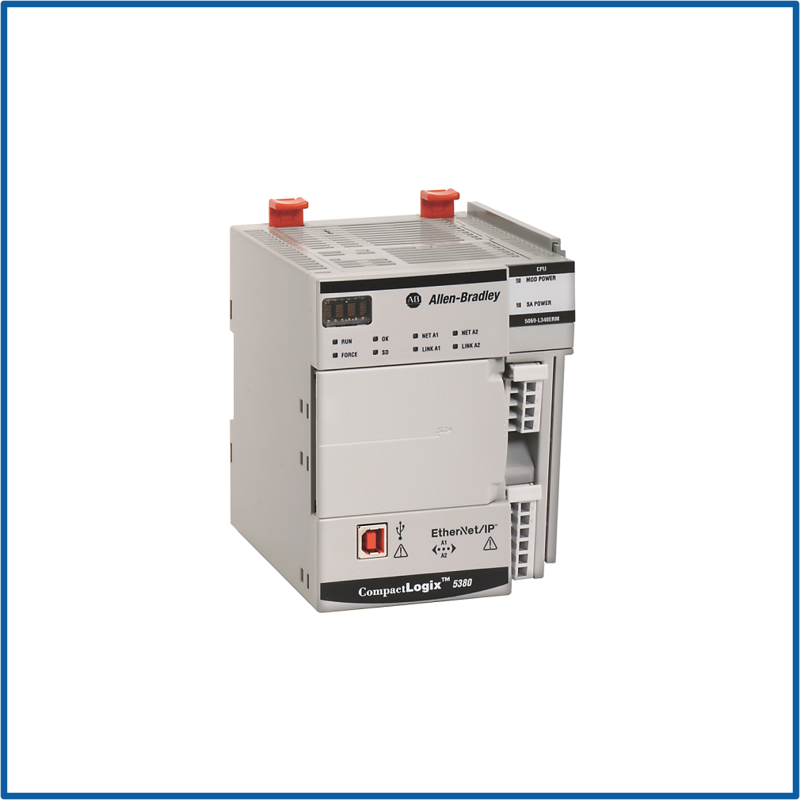

CompactLogix 1MB Enet Motion Controller
SKU: 5069-L310ERM
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The 5069-L310ERM is a mid-range CompactLogix 5380 controller intended for industrial automation systems that require integrated motion control over EtherNet/IP.
It provides modest logic complexity with 1 MB of user memory and can perform synchronized motion for up to 16 axes via the CIP Motion protocol.
This controller has two inbuilt Gigabit Ethernet ports, enabling for various network topologies such as Device Level Ring (DLR), Linear, and Star.
The "ERM" designation stands for Ethernet Remote Motion, indicating that it can control motion devices such as Kinetix servo drives over a distributed network.
High-speed performance, scalable I/O, and smooth connection with Studio 5000 Logix Designer software make the 5069-L310ERM perfect for applications including packing, material handling, and synchronized robots.
Buy currently uses Select Automation shop pricing and checkout.
Technical Specifications:
Catalogue Number: 5069-L310ERM.
Series: CompactLogix 5380.
Controller Type: Integrated Ethernet/IP Motion Controller.
User Memory: 1 MB.
Motion Control:
Supports up to 16 motion axes over EtherNet/IP.
Uses CIP Motion protocol for synchronized motion control.
I/O Capacity:
Local: Up to 31 Compact 5000 I/O modules.
Remote: Up to 256 EtherNet/IP nodes.
Ethernet Ports:
Dual embedded 1 Gb Ethernet ports.
Supports Device Level Ring (DLR), Linear, and Star topologies.
Communication Protocols:
EtherNet/IP.
CIP Sync.
Safety Support: Not supported (standard controller only).
Removable Storage: SD card slot for program backup and data logging.
Programming Software: Studio 5000 Logix Designer.
Power Supply: 24V DC.
Mounting Type: DIN rail.
Status Indicators: LED indicators for module health and communication.
Environmental Ratings:
Operating Temperature: -20°C to +60°C.
Storage Temperature: -40°C to +85°C.
Relative Humidity: 5% to 95% non-condensing.
Certifications: CE, UL, cUL, RoHS.
Dimensions: Standard CompactLogix 5380 footprint.
Weight: Approx. 0.5 kg (varies slightly by configuration).
