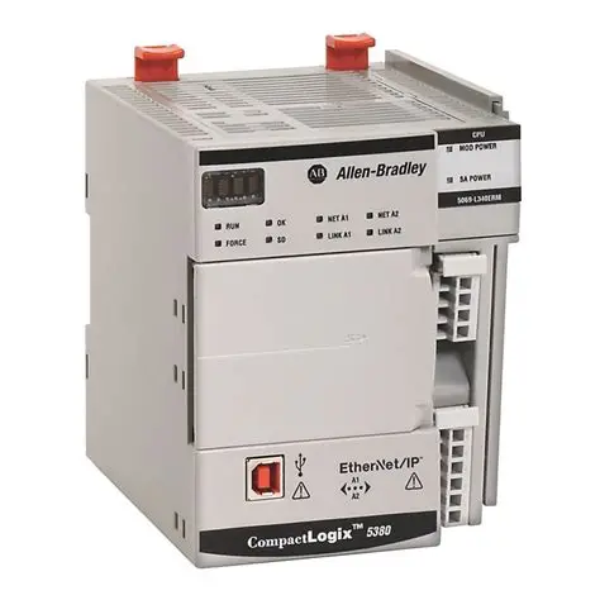

CompactLogix 1MB Enet Motion Controller
SKU: 5069-L310ERMK
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
Allen-Bradley's CompactLogix 5380 controller, the 5069-L310ERMK, is designed for high-performance control applications that demand integrated motion and powerful Ethernet networking.
It has 1 MB of user memory and provides motion control via EtherNet/IP, making it perfect for systems that require coordinated servo motors, robotics, or packaging machinery.
The suffix "MK" denotes that the controller has conformal coating, which protects internal circuitry from moisture, dust, and corrosive elements—ideal for tough industrial situations such as food processing or chemical manufacturing.
With dual embedded EtherNet/IP ports, the controller supports the Device Level Ring (DLR) topology for fault-tolerant networking.
It effortlessly interacts with Studio 5000 Logix Designer to provide unified programming for logic, motion, and communication activities.
Buy currently uses Select Automation shop pricing and checkout.
Controller Specifications:
User Memory: 1 MB.
Controller Series: CompactLogix 5380.
Motion Support:
Integrated motion over EtherNet/IP.
Supports coordinated motion control for servo drives.
Conformal Coating: Yes (MK variant for harsh environments).
EtherNet/IP Ports:
2 × embedded ports.
Supports Device Level Ring (DLR) and linear topologies.
Backplane Bandwidth: 50 Mbps.
Real-Time Clock: Integrated.
SD Card Slot: Optional (for backup and restore).
Power Supply: 24 VDC input.
Programming Software: Studio 5000 Logix Designer.
System Integration:
Max Local I/O Modules: Up to 16 Compact 5000 modules.
Max EtherNet/IP Nodes: 180.
Max Motion Axes: 16.
Max Tasks: 32.
Max Programs per Task: 100.
Environmental Ratings:
Operating Temperature: –20°C to +65°C.
Storage Temperature: –40°C to +85°C.
Humidity: 5% to 95%, non-condensing.
Shock Resistance: 30g.
Vibration Resistance: 10–500 Hz, 2g.
