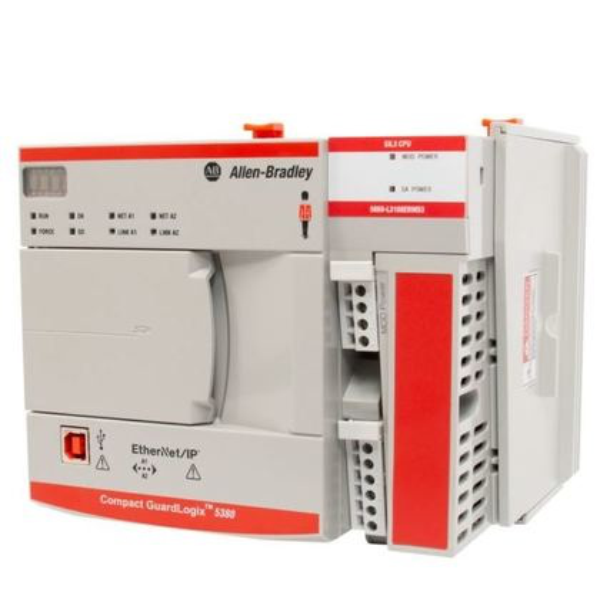

Compact GuardLogix SIL3 3.0/1.5M Motion
SKU: 5069-L330ERMS3
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The 5069-L330ERMS3 is a mid-range Compact GuardLogix 5380 safety-rated controller intended for applications that require both standard control and integrated safety with motion capabilities.
It has 3.0 MB of ordinary user memory and 1.5 MB of safety memory, making it perfect for coordinated motion, packing, and material handling systems that require both SIL-rated safety and high-speed performance.
This controller supports Integrated Motion via EtherNet/IP for up to 32 axes and has twin embedded EtherNet/IP ports that support the Device Level Ring (DLR) topology.
It is programmed with Studio 5000 Logix Designer, which allows for unified construction of safety and standard logic.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Standard User Memory: 3.0 MB.
Safety Memory: 1.5 MB.
Safety Rating: SIL 3 / PLe (IEC 61508, ISO 13849-1).
Motion Support: Integrated Motion over EtherNet/IP.
Axes Supported: Up to 32 axes.
Communication Ports:
2 × EtherNet/IP ports (embedded switch, DLR support).
I/O Capacity: Supports Compact 5000 I/O modules.
Backplane Communication: 50 Mbps.
Real-Time Clock: Integrated.
SD Card Support: Optional for backup and restore.
Conformal Coating: Yes.
Power Requirements: 24 VDC input.
Programming Software: Studio 5000 Logix Designer.
Environmental Ratings:
Operating Temperature: –20°C to +65°C.
Storage Temperature: –40°C to +85°C.
Humidity: 5% to 95%, non-condensing.
Shock Resistance: 30g.
Vibration Resistance: 10–500 Hz, 2g.
