Compact GuardLogix SIL3 3.0/1.5M Motion
SKU: 5069-L330ERMS3K
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:

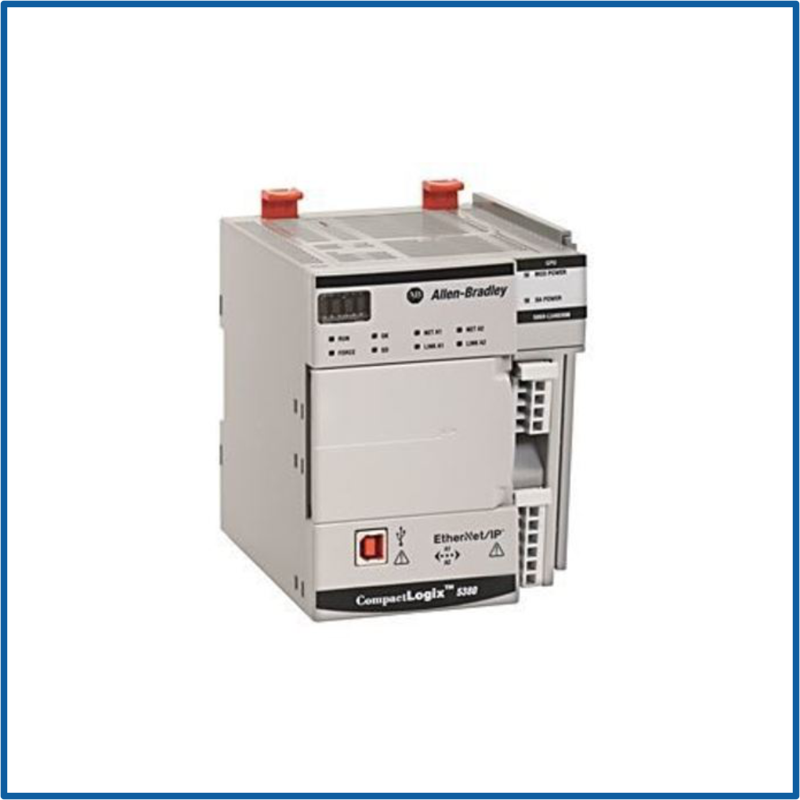

The 5069-L330ERMS3K is a high-end safety controller from Rockwell Automation's Compact GuardLogix 5380 family.
Engineered for high-performance applications, it combines superior motion control with SIL 3 / PLe safety compliance, making it ideal for smart machines and coordinated motion systems in harsh industrial environments.
Core features:
Memory: 3.0 MB for standard control duties; 1.5 MB for safety purposes.
Safety certification is SIL 3 / PLe compatible for functional safety applications.
Motion Control: Supports up to 32 axes of integrated motion via EtherNet/IP.
Networking: Dual EtherNet/IP ports support high-speed connectivity and device-level ring topologies.
Programming Platform: Studio 5000 Logix Designer is used to create unified control, safety, and motion solutions.
Conformal Coating: The "K" suffix denotes protection for demanding industrial settings.
Mounting: DIN rail for a compact and effective installation.
Power input: 24 volts direct current.
Application Focus: Suitable for robotics, packaging, material handling, and other safety-critical automation systems.
Buy currently uses Select Automation shop pricing and checkout.
Technical Specifications:
Controller Series: Compact GuardLogix 5380.
Model: 5069-L330ERMS3K.
Standard Memory: 3.0 MB.
Safety Memory: 1.5 MB.
Safety Rating: SIL 3 / PLe certified for functional safety applications.
Motion Control: Integrated motion over EtherNet/IP (supports up to 32 axes).
Communication Ports: Dual EtherNet/IP ports for high-speed networking and device-level ring.
Programming Software: Studio 5000 Logix Designer.
I/O Support: Compatible with 5069 local I/O and distributed I/O over EtherNet/IP.
Conformal Coating: Yes (K suffix indicates protection for harsh environments).
Mounting Type: DIN rail.
Power Supply: 24V DC input.
Operating Temperature: Typically -20°C to +60°C (verify with datasheet).
Certifications: CE, UL, cUL, TÜV, and others depending on region.
