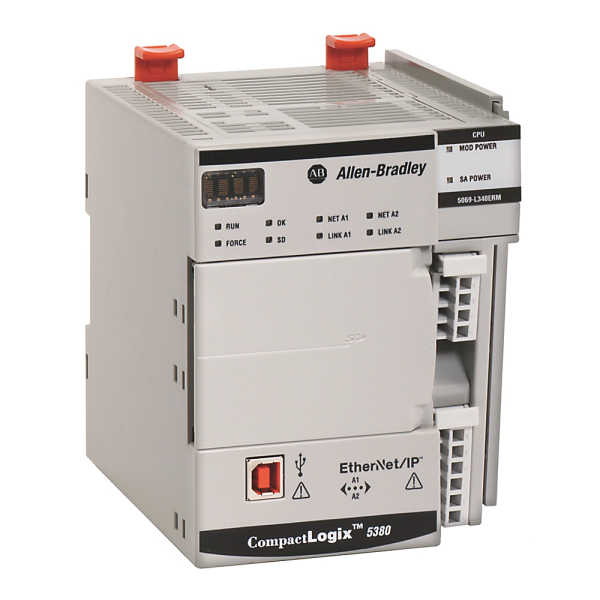

CompactLogix 4 MB Enet Motion Controller
SKU: 5069-L340ERM
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The 5069-L340ERM is a high-performance CompactLogix 5380 controller that supports sophisticated control and Integrated Motion via EtherNet/IP.
It has 4 MB of user memory and can support up to 32 motion axes, making it perfect for sophisticated automation systems that require coordinated motion, such as robotics, packaging, and high-speed assembly lines.
The "ERM" suffix signifies:
ER: Built-in twin EtherNet/IP ports
M: Integrated Motion Support.
This controller provides accurate motion control over Ethernet, removing the requirement for separate motion modules.
It supports the Device Level Ring (DLR) topology for fault-tolerant networking and works smoothly with Studio 5000 Logix Designer to enable for unified development of control and motion logic.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
User Memory: 4 MB.
Controller Series: CompactLogix 5380.
Motion Support: Integrated Motion over EtherNet/IP.
Maximum Axes: 32 axes.
EtherNet/IP Ports:
2 × embedded ports.
Support for DLR topology.
Backplane Bandwidth: 50 Mbps.
Real-Time Clock: Integrated.
SD Card Slot: Optional (for backup and restore).
Power Supply: 24 VDC input.
Programming Software: Studio 5000 Logix Designer.
Integration & Compatibility:
I/O Platform: Compact 5000 I/O modules.
Compatible Motion Devices: Kinetix servo drives over EtherNet/IP.
Safety Support: Not safety-rated (use GuardLogix for safety applications).
Environmental Ratings:
Operating Temperature: –20°C to +65°C.
Storage Temperature: –40°C to +85°C.
Humidity: 5% to 95%, non-condensing.
Shock Resistance: 30g.
Vibration Resistance: 10–500 Hz, 2g.
