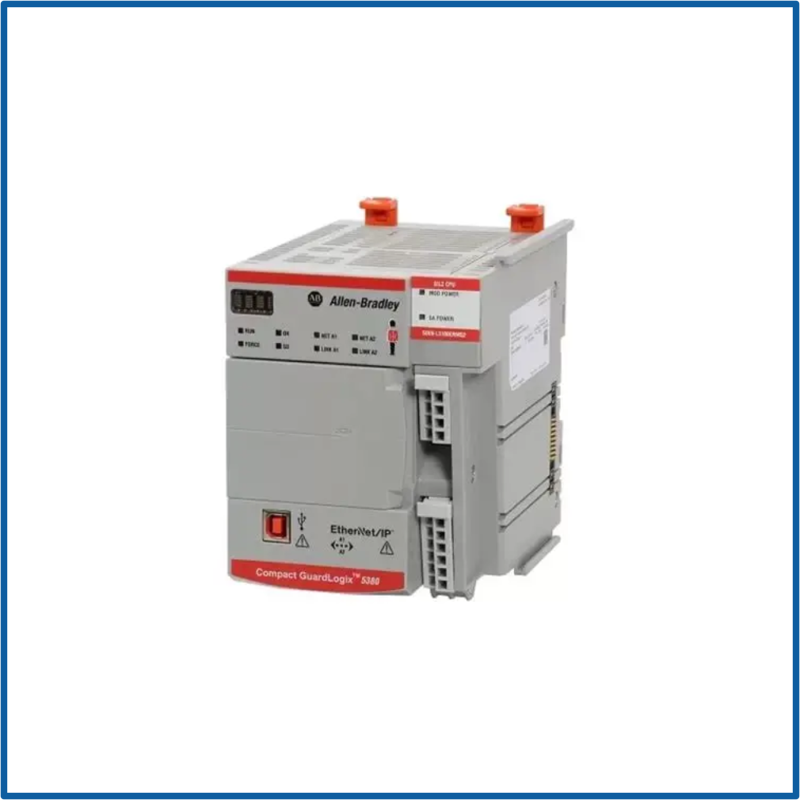

Compact GuardLogix SIL3 4.0/2.0M Motion
SKU: 5069-L340ERMS3
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The 5069-L340ERMS3 is a high-performance safety controller from Rockwell Automation's Compact GuardLogix 5380 family.
Designed for harsh industrial environments, it combines superior motion control with SIL 3 / PLe safety compliance, making it perfect for smart machines, coordinated motion, and safety-critical automation systems.
Core features:
Memory: 4.0 MB for regular control operations; 2.0 MB for safety purposes.
Safety certification is SIL 3 / PLe compatible for functional safety applications.
Motion Control: EtherNet/IP-integrated motion with up to 32 axes.
Networking: Dual EtherNet/IP ports support high-speed connectivity and device-level ring topologies.
Programming Platform: Studio 5000 Logix Designer for unified development in control, safety, and motion.
Mounting: DIN rail for a compact and effective installation.
Power input: 24 volts direct current.
Application Focus: Suitable for robotics, packaging, material handling, and other safety-critical automation systems.
Buy currently uses Select Automation shop pricing and checkout.
Technical Specifications:
Controller Series: Compact GuardLogix 5380.
Model: 5069-L340ERMS3.
Standard Memory: 4.0 MB.
Safety Memory: 2.0 MB.
Safety Rating: SIL 3 / PLe certified for functional safety applications.
Motion Control: Integrated motion over EtherNet/IP (supports up to 32 axes).
Communication Ports: Dual EtherNet/IP ports for high-speed networking and device-level ring.
Programming Software: Studio 5000 Logix Designer.
I/O Support: Compatible with 5069 local I/O and distributed I/O over EtherNet/IP.
Conformal Coating: No (unlike “K” variants).
Mounting Type: DIN rail.
Power Supply: 24V DC input.
Operating Temperature: Typically -20°C to +60°C (check datasheet for exact range).
Certifications: CE, UL, cUL, TÜV, and others depending on region.
