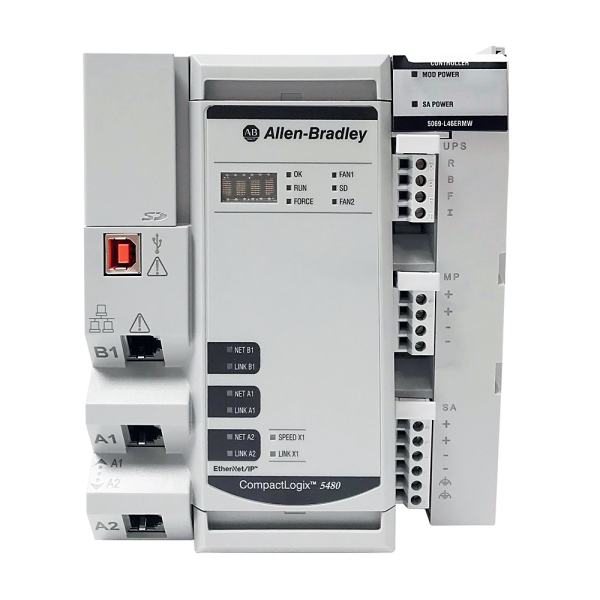

CompactLogix 5480 Controller
SKU: 5069-L4200ERMW
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The 5069-L4200ERMW is a powerful member of the CompactLogix 5480 controller family, designed to integrate real-time control with Windows-based computing in a single device.
It has 200 MB of user memory and can support Integrated Motion over EtherNet/IP for up to 256 axes, making it ideal for large-scale, high-performance automation applications.
The "W" suffix signifies that the controller runs Windows 10 IoT Enterprise, which allows customers to run bespoke apps such as analytics, machine learning, visual processing, or HMI directly on the controller.
The "MW" model incorporates conformal coating, which provides further protection against moisture, dust, and corrosive conditions.
This hybrid architecture allows for seamless integration of control and computing, decreasing system complexity and latency while supporting advanced industrial applications.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
User Memory: 200 MB.
Controller Series: CompactLogix 5480.
Operating System: Windows 10 IoT Enterprise + Logix real-time engine.
Motion Support: Integrated Motion over EtherNet/IP.
Maximum Axes: Up to 256 axes.
Communication Ports:
2 × EtherNet/IP ports (embedded switch, DLR support).
2 × USB 3.0 ports.
1 × DisplayPort.
1 × Serial port.
I/O Compatibility: Compact 5000 I/O modules.
Conformal Coating: Yes (“MW” variant).
Real-Time Clock: Integrated.
SD Card Support: Optional.
Power Requirements: 24 VDC input.
Programming Software: Studio 5000 Logix Designer + Windows applications.
Environmental Ratings:
Operating Temperature: –20°C to +60°C.
Storage Temperature: –40°C to +85°C.
Humidity: 5% to 95%, non-condensing.
Shock Resistance: 30g.
Vibration Resistance: 10–500 Hz, 2g.
