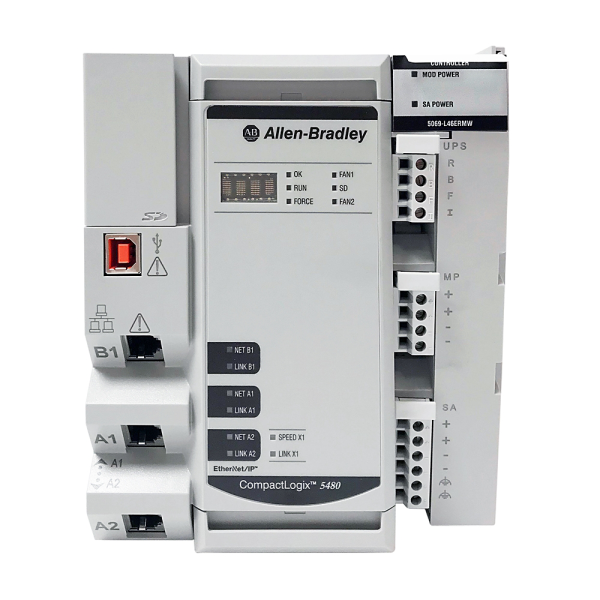

CompactLogix 5480 Controller
SKU: 5069-L450ERMW
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The 5069-L450ERMW is a high-end CompactLogix 5480 controller that combines real-time control and Windows-based computing in a single device.
It has 500 MB of user memory, supports Integrated Motion over EtherNet/IP with up to 256 axes, and runs Windows 10 IoT Enterprise with the Logix control engine, making it ideal for advanced industrial applications like as machine learning, visual processing, and high-speed coordinated motion.
The "W" suffix denotes Windows capabilities, whilst the "MW" model features conformal coating for improved protection in hostile conditions.
This hybrid design enables customers to run analytics, HMI, or custom applications directly on the controller, thereby decreasing latency and complexity.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
User Memory: 500 MB.
Controller Series: CompactLogix 5480.
Operating System: Windows 10 IoT Enterprise + Logix real-time engine.
Motion Support: Integrated Motion over EtherNet/IP.
Maximum Axes: Up to 256 axes.
Communication Ports:
2 × EtherNet/IP ports (embedded switch, DLR support).
2 × USB 3.0 ports.
1 × DisplayPort.
1 × Serial port.
I/O Compatibility: Compact 5000 I/O modules.
Conformal Coating: Yes (“MW” variant).
Real-Time Clock: Integrated.
SD Card Support: Optional.
Power Requirements: 24 VDC input.
Programming Software: Studio 5000 Logix Designer + Windows applications.
Environmental Ratings:
Operating Temperature: –20°C to +60°C.
Storage Temperature: –40°C to +85°C.
Humidity: 5% to 95%, non-condensing.
Shock Resistance: 30g.
Vibration Resistance: 10–500 Hz, 2g.
