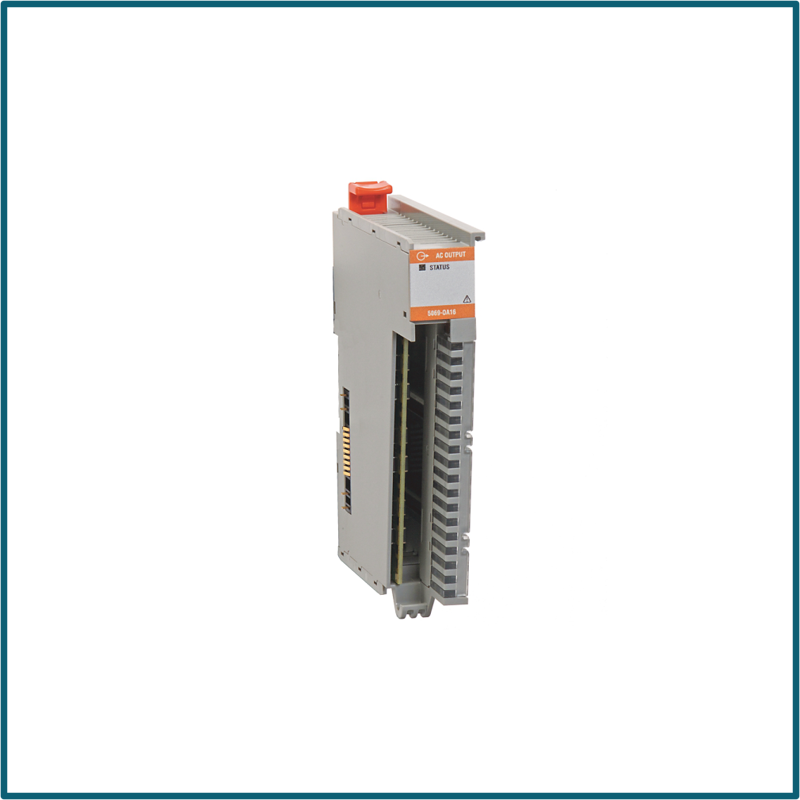

Compact 5000 AC Output Module
SKU: 5069-OA16
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The 5069-OA16 is a 16-point AC digital output module in Rockwell Automation's Compact 5000 I/O line.
This module, designed for use with CompactLogix 5380 and 5480 controllers, reliably switches AC-powered devices such as solenoids, contactors, and indicator lamps.
It enables high-speed output operations and has channel-to-channel isolation to improve safety and flexibility in industrial settings.
Core features:
Output channels include 16 individually separated AC output ports.
Voltage Range: 85-265V AC, suited for a variety of industrial devices.
Triac-based switching provides smooth AC control.
Current Capacity: Up to 0.5 A per channel, or 4 A total per module.
Status Indicators: LED indicators for each output point allow for easy diagnosis.
Mounting: DIN rail for a compact and secure installation.
Compatibility: Works perfectly with CompactLogix 5380/5480 controllers.
Conformal Coating is available in coated versions (K suffix) for severe situations.
Buy currently uses Select Automation shop pricing and checkout.
Technical Specifications:
Series: Compact 5000 I/O.
Catalogue Number: 5069-OA16.
Type: AC Digital Output Module.
Number of Output Channels: 16 individually isolated outputs.
Output Voltage Range: 85–265V AC (nominal 120/240V AC).
Output Type: Triac (zero-crossing switching).
Maximum Output Current:
0.5 A per channel.
4 A total per module.
Surge Current: 10 A for 16.6 ms (non-repetitive).
Isolation:
Channel-to-channel isolation.
Channel-to-backplane isolation.
Status Indicators: Yellow LEDs for each output point.
Backplane Power Consumption: Approximately 2.5 W.
Field Power Supply: 120/240V AC.
Mounting Type: DIN rail.
Conformal Coating: Available in coated version (suffix “K”).
Operating Temperature: -20°C to +60°C.
Storage Temperature: -40°C to +85°C.
Relative Humidity: 5% to 95% non-condensing.
Certifications: CE, UL, cUL, RCM, KC, EAC, RoHS.
Compatible Controllers: CompactLogix 5380 and 5480 series.
