Compact 5000 DC Output Module
SKU: 5069-OB16
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:

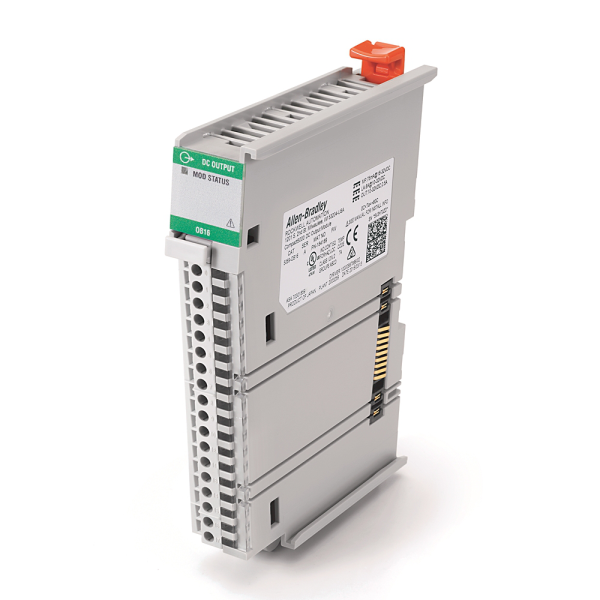

The 5069-OB16 is a high-speed Compact 5000 DC digital output module intended for use with CompactLogix 5380 and Compact GuardLogix 5380 controllers.
It has 16 sourcing (PNP) output channels, making it excellent for controlling discrete devices like solenoids, relays, and indicator lights in industrial automation systems.
The module, designed for performance and dependability, supports 24 VDC operation, provides short-circuit and overload protection, and incorporates channel-level diagnostics and LED status indicators for simple troubleshooting.
Its small form factor and compatibility with Studio 5000 Logix Designer software make it an adaptable option for high-speed machine control, packing, and material handling applications.
Buy currently uses Select Automation shop pricing and checkout.
Electrical Specifications:
Module Type: Digital Output.
Channels: 16 sourcing (PNP) outputs.
Voltage Range: 18–32 VDC.
Nominal Voltage: 24 VDC.
Output Type: Solid-state.
Max Current per Channel: 2 A.
Max Current per Module: 8 A total.
Output Delay:
On: < 1 ms.
Off: < 1 ms.
Isolation:
Channel-to-backplane isolation.
No channel-to-channel isolation.
Diagnostics & Indicators:
Diagnostics:
Open load detection.
Short-circuit protection.
Overload protection.
Status Indicators:
Individual LED indicators per channel.
Compatibility & Integration:
Compatible Controllers:
CompactLogix 5380.
Compact GuardLogix 5380.
I/O Platform: Compact 5000.
Programming Software: Studio 5000 Logix Designer.
Environmental Ratings:
Operating Temperature: –20°C to +65°C.
Storage Temperature: –40°C to +85°C.
Humidity: 5% to 95%, non-condensing.
Shock Resistance: 30g.
Vibration Resistance: 10–500 Hz, 2g.
