Compact 5000 Fast DC Output Module
SKU: 5069-OB16F
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:

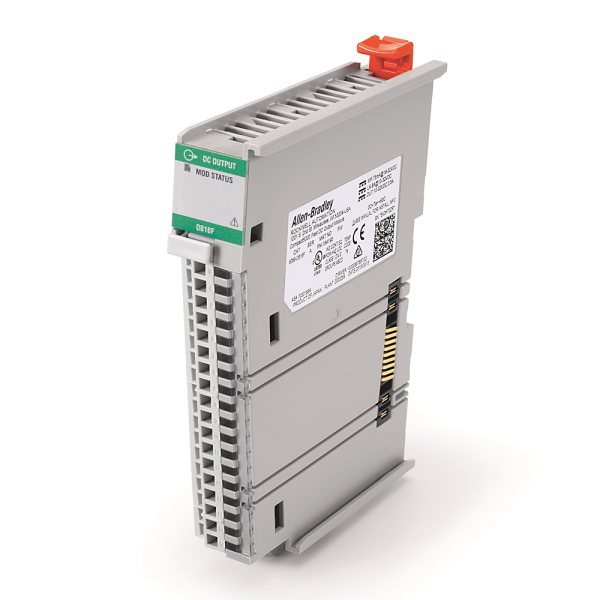

The 5069-OB16F is a high-speed Compact 5000 DC digital output module intended for precise and timely control in industrial automation systems.
It has 16 source (PNP) output channels designed for fast switching applications like high-speed sorting, packaging, and motion control.
The "F" variation is distinguished by its extremely quick output reaction time—typically less than 0.1 milliseconds—making it excellent for systems that demand rapid actuation and precise timing synchronization.
The module incorporates diagnostic features such as short-circuit and overload protection, open-load detection, and unique LED indications for each channel to make troubleshooting easier.
Designed to work with CompactLogix 5380 and Compact GuardLogix 5380 controllers, the 5069-OB16F offers a dependable and expandable solution for high-performance digital output requirements.
It also interacts easily with Studio 5000 Logix Designer.
Buy currently uses Select Automation shop pricing and checkout.
Electrical Specifications:
Module Type: Fast DC Digital Output.
Channels: 16 sourcing (PNP) outputs.
Voltage Range: 18–32 VDC.
Nominal Voltage: 24 VDC.
Output Type: Solid-state.
Max Current per Channel: 2 A.
Max Current per Module: 8 A total.
Output Delay:
On: < 0.1 ms.
Off: < 0.1 ms.
Isolation:
Channel-to-backplane isolation.
No channel-to-channel isolation.
Diagnostics & Indicators:
Diagnostics:
Open load detection.
Short-circuit protection.
Overload protection.
Status Indicators:
Individual LED indicators per channel.
Integration & Compatibility:
Compatible Controllers:
CompactLogix 5380.
Compact GuardLogix 5380.
I/O Platform: Compact 5000.
Programming Software: Studio 5000 Logix Designer.
Environmental Ratings:
Operating Temperature: –20°C to +65°C.
Storage Temperature: –40°C to +85°C.
Humidity: 5% to 95%, non-condensing.
Shock Resistance: 30g.
Vibration Resistance: 10–500 Hz, 2g.
