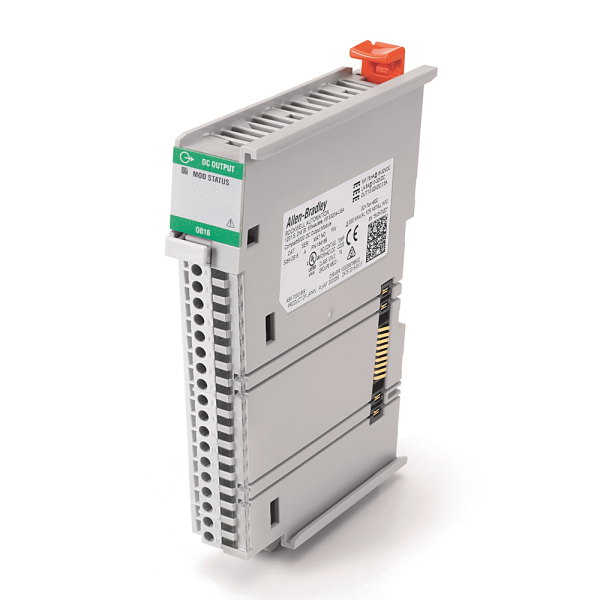

Compact 5000 DC Output Module
SKU: 5069-OB16K
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The 5069-OB16K is a ruggedized Compact 5000 DC digital output module intended for high-performance industrial control in extreme conditions.
It has 16 sourcing (PNP) output channels, which are useful for controlling devices like as solenoids, relays, and indicator lights in discrete automation systems.
The "K" suffix denotes that the module has conformal coating, which protects internal circuitry from moisture, dust, and corrosive substances, making it appropriate for harsh environments such as food processing, mining, or outdoor installations.
With quick response times, built-in diagnostics, and unique LED indications for each channel, the 5069-OB16K offers dependable operation and easy troubleshooting.
With its smooth connection with CompactLogix 5380 and GuardLogix 5380 controllers, high-speed communication capabilities, and Studio 5000 Logix Designer configuration, it's a reliable and adaptable option for contemporary control systems.
Buy currently uses Select Automation shop pricing and checkout.
Electrical Specifications:
Module Type: Digital Output.
Channels: 16 sourcing (PNP) outputs.
Voltage Range: 18–32 VDC.
Nominal Voltage: 24 VDC.
Output Type: Solid-state.
Max Current per Channel: 2 A.
Max Current per Module: 8 A total.
Output Delay:
On: < 1 ms.
Off: < 1 ms.
Isolation:
Channel-to-backplane isolation.
No channel-to-channel isolation.
Diagnostics & Indicators:
Diagnostics:
Open load detection.
Short-circuit protection.
Overload protection.
Status Indicators:
Individual LED indicators per channel.
Integration & Compatibility:
Compatible Controllers:
CompactLogix 5380.
GuardLogix 5380.
I/O Platform: Compact 5000.
Programming Software: Studio 5000 Logix Designer.
Conformal Coating: Yes (indicated by “K” suffix).
Environmental Ratings:
Operating Temperature: –20°C to +65°C.
Storage Temperature: –40°C to +85°C.
Humidity: 5% to 95%, non-condensing.
Shock Resistance: 30g.
Vibration Resistance: 10–500 Hz, 2g.
