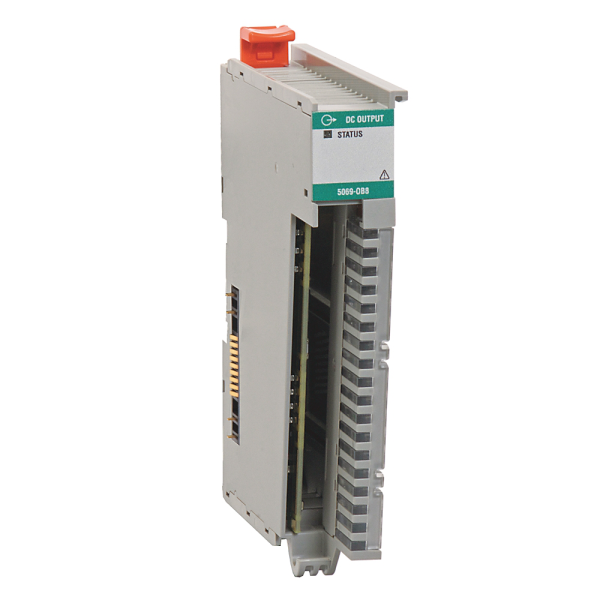

Compact 5000 DC Output Module
SKU: 5069-OB8
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The 5069-OB8 is a compact and efficient DC digital output module from the Compact 5000 I/O family that is compatible with the CompactLogix 5380 and GuardLogix 5380 controllers.
It has eight source (PNP) output channels, making it excellent for controlling discrete devices like solenoids, relays, and indicator lights in industrial automation systems.
This module is ideal for applications that require fewer outputs while maintaining good performance and dependability.
It has rapid switching, diagnostic capabilities like as short-circuit and overload protection, and unique LED indications for each channel to make troubleshooting easier.
The 5069-OB8 is designed for seamless connection with Studio 5000 Logix Designer, providing a scalable and robust solution for modern control systems.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Module Type: DC Digital Output.
Channels: 8 sourcing outputs.
Output Type: Solid-state (PNP).
Voltage Range: 18–32 VDC.
Nominal Voltage: 24 VDC.
Max Output Current:
2 A per channel.
8 A total per module.
Output Delay:
On: < 1 ms.
Off: < 1 ms.
Isolation: Channel-to-backplane isolation.
Diagnostics:
Open load detection.
Short-circuit protection.
Overload protection.
Status Indicators: Individual LEDs per channel.
Compatible Controllers: CompactLogix 5380, GuardLogix 5380.
Programming Software: Studio 5000 Logix Designer.
Environmental Ratings:
Operating Temperature: –20°C to +65°C.
Storage Temperature: –40°C to +85°C.
Humidity: 5% to 95%, non-condensing.
Shock Resistance: 30g.
Vibration Resistance: 10–500 Hz, 2g.
