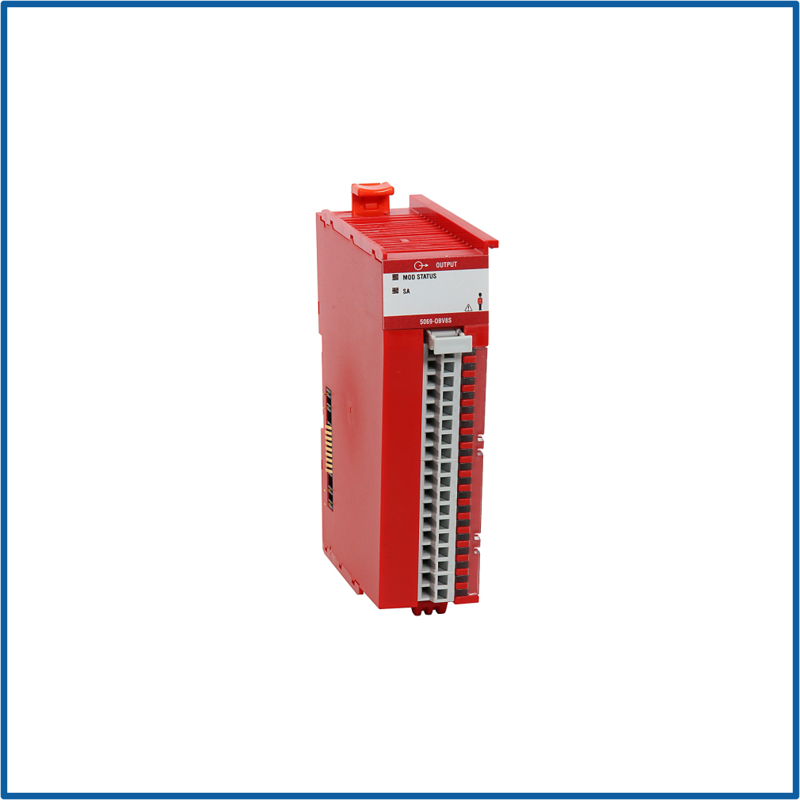

Compact5000 DC Safety Output Module
SKU: 5069-OBV8S
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The 5069-OBV8S is a high-integrity DC safety output module from Rockwell Automation's Compact 5000 I/O family, intended for use in safety-critical applications with Compact GuardLogix 5380 controllers.
Eight safety-rated source digital outputs are available, allowing systems that need SIL2/PLd or SIL3/PLe compliance to operate actuators including contactors, solenoids, and indication lights.
This module offers advanced diagnostics such as output pulse testing, open/short circuit detection, and channel-level fault reporting, which ensures fast response and fault isolation in safety zones.
It completely integrates into Studio 5000 Logix Designer's safety configuration tools, allowing engineers to easily develop certified safety routines.
The 5069-OBV8S is excellent for applications in packing, robotics, and material handling that require dependable safety control and rapid reaction.
Buy currently uses Select Automation shop pricing and checkout.
Technical Specifications:
Catalogue Number: 5069-OBV8S.
Module Type: DC Safety Output Module.
Number of Outputs: 8 digital outputs.
Output Type: Sourcing (positive logic).
Voltage Range: 18–32V DC.
Output Current:
Max 2 A per channel.
Max 8 A total per module.
Safety Ratings:
SIL2 / PLd (1oo1 configuration).
SIL3 / PLe (1oo2 configuration).
TÜV certified.
Diagnostics:
Output pulse testing.
Open/short circuit detection.
Channel-level fault reporting.
Communication:
Integrated with Compact GuardLogix 5380 controllers.
Uses CIP Safety over EtherNet/IP.
Programming Software: Studio 5000 Logix Designer (Safety Editor required).
Mounting Type: DIN rail.
Status Indicators:
Individual channel LEDs for output and fault status.
Environmental Ratings:
Operating Temperature: -20°C to +60°C.
Storage Temperature: -40°C to +85°C.
Relative Humidity: 5% to 95% non-condensing.
Certifications: CE, UL, cUL, RoHS, TÜV.
Dimensions: Matches standard Compact 5000 I/O footprint.
Weight: Approx. 0.3–0.5 kg.
