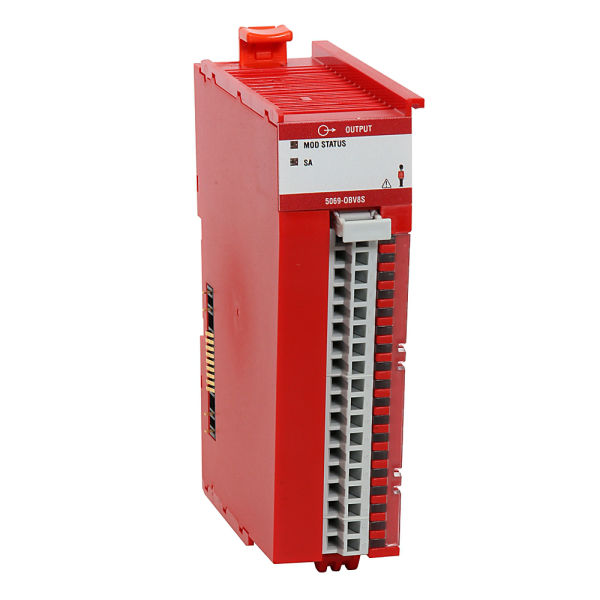

Compact5000 DC Safety Output Module
SKU: 5069-OBV8SK
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The 5069-OBV8SK is a Compact 5000 series safety-rated digital output module intended for use with Compact GuardLogix 5380 controllers.
It has 8 solid-state DC safety-rated outputs, allowing you to control actuators like contactors, solenoids, and indicator lights in applications that require SIL 3 / PLe functional safety.
This module enables point-level diagnostics, output pulse testing, and fault detection in safety-critical systems, assuring dependable operation.
It is excellent for usage in industries like as automotive, packaging, and material handling, where integrated safety and rapid response are required.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Module Type: DC Safety Output.
Series: Compact 5000.
Channels: 8 solid-state sourcing outputs.
Voltage Range: 18–32 VDC.
Output Type: Sourcing (PNP).
Max Output Current: 2 A per channel, 8 A total per module.
Safety Rating: SIL 3 / PLe (IEC 61508, ISO 13849-1).
Diagnostics: Point-level fault detection, pulse testing.
Isolation: Channel-to-channel and channel-to-backplane isolation.
Status Indicators: Per-channel LEDs for output and fault status.
Compatible Controllers: Compact GuardLogix 5380 series.
Programming Software: Studio 5000 Logix Designer.
Environmental Ratings:
Operating Temperature: –20°C to +65°C.
Storage Temperature: –40°C to +85°C.
Humidity: 5% to 95%, non-condensing.
Shock Resistance: 30g.
Vibration Resistance: 10–500 Hz, 2g.
