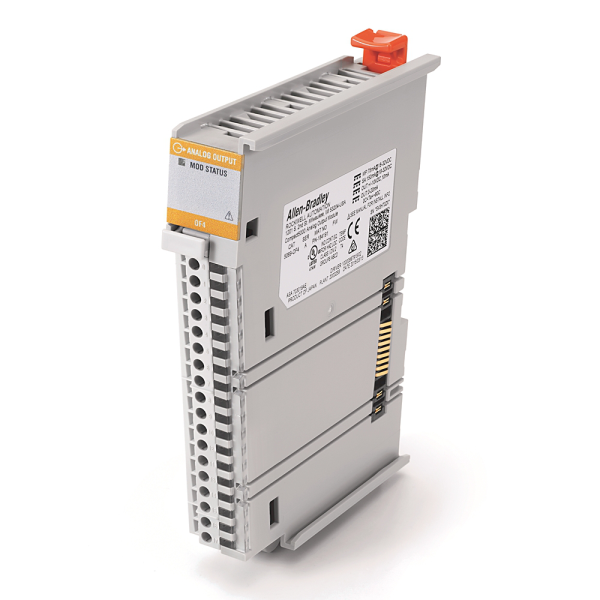

Compact 5000 Analog Output Module
SKU: 5069-OF4
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The 5069-OF4 is a Compact 5000 series analogue output module intended for use with the CompactLogix 5380 and Compact GuardLogix 5380 controllers.
It has four analogue output channels, making it excellent for operating actuators, valves, motors, and other devices that require accurate analogue signals.
This module supports numerous output ranges and generates high-resolution signals while also providing advanced diagnostics such as open-wire identification and channel failure monitoring.
It's ideal for process control, machine automation, and hybrid applications requiring analogue precision.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Module Type: Analog Output.
Channels: 4 analogue outputs.
Output Signal Types:
±10 VDC.
0–10 VDC.
0–20 mA.
4–20 mA.
Resolution:
Voltage: 16 bits.
Current: 15 bits.
Accuracy: ±0.1% of full scale.
Update Rate: 1 ms per channel.
Diagnostics:
Open-wire detection.
Channel fault status.
Isolation: Channel-to-backplane isolation.
Status Indicators: Per-channel LEDs.
Compatible Controllers: CompactLogix 5380, Compact GuardLogix 5380.
Programming Software: Studio 5000 Logix Designer.
Environmental Ratings:
Operating Temperature: –20°C to +65°C.
Storage Temperature: –40°C to +85°C.
Humidity: 5% to 95%, non-condensing.
Shock Resistance: 30g.
Vibration Resistance: 10–500 Hz, 2g.
