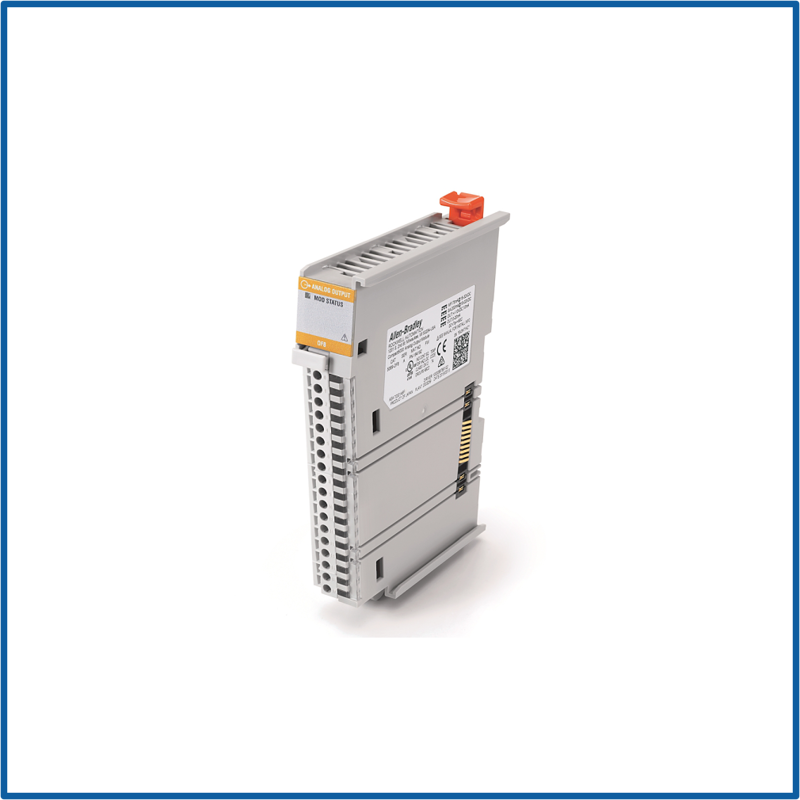

Compact 5000 Analog Output Module
SKU: 5069-OF8
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The 5069-OF8 is an 8-channel analogue output module from Rockwell Automation's Compact 5000 I/O line that provides precise and versatile analogue signals to industrial control systems.
It has voltage and current output ranges, making it excellent for controlling actuators, valves, motors, and other analogue devices in process automation, machine control, and hybrid systems.
Each channel is individually customizable, allowing engineers to match output types to specific field equipment.
With a 16-bit resolution, the module provides great accuracy and smooth control performance.
It works smoothly with CompactLogix 5380 controllers and is programmed in Studio 5000 Logix Designer to provide consistent and scalable analogue control throughout your automation infrastructure.
Buy currently uses Select Automation shop pricing and checkout.
Technical Specifications:
Catalogue Number: 5069-OF8.
Module Type: Analog Output.
Channels: 8 individually configurable analogue outputs.
Signal Types Supported:
Voltage: ±10V, 0–10V, 0–5V.
Current: 0–20 mA, 4–20 mA.
Resolution: 16-bit.
Accuracy: ±0.1% of full scale (typical).
Update Rate: Fast response suitable for high-speed control loops.
Channel Isolation: No isolation between channels.
Diagnostics:
Open circuit detection.
Fault indication per channel.
Configuration:
Per-channel selection of voltage or current output.
Configurable scaling and range settings via Studio 5000.
Communication:
Integrated with CompactLogix 5380 controllers.
Uses high-speed backplane communication.
Programming Software: Studio 5000 Logix Designer.
Mounting Type: DIN rail.
Status Indicators:
LED indicators for module health and individual channel status.
Environmental Ratings:
Operating Temperature: -20°C to +60°C.
Storage Temperature: -40°C to +85°C.
Relative Humidity: 5% to 95% non-condensing.
Certifications: CE, UL, cUL, RoHS.
Dimensions: Standard Compact 5000 I/O footprint.
Weight: Approx. 0.3–0.5 kg.
