Compact 5000 Relay Output Module
SKU: 5069-OW16
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:

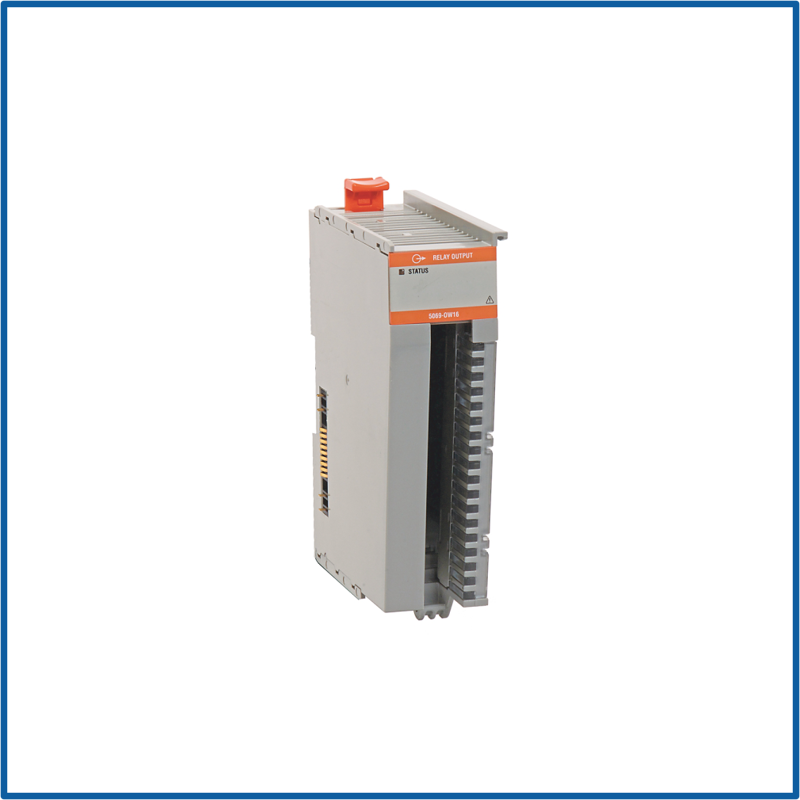

The 5069-OW16 is a 16-channel relay output module from Rockwell Automation's Compact 5000 I/O line, which can switch both AC and DC loads in industrial control systems.
Each channel includes electromechanical relay contacts, which provide galvanic isolation and can tolerate higher voltages and currents than solid-state outputs.
This module is perfect for controlling devices like solenoids, contactors, alarms, and pilot lights, particularly in situations that demand electrical isolation and reliable switching.
It works seamlessly with CompactLogix 5380 controllers and is customized using Studio 5000 Logix Designer, making it a dependable option for discrete control jobs in manufacturing, process automation, and building systems.
Buy currently uses Select Automation shop pricing and checkout.
Technical Specifications:
Catalogue Number: 5069-OW16.
Module Type: Relay Output.
Number of Channels: 16 individually isolated outputs.
Contact Type: Form A (normally open) electromechanical relays.
Output Voltage Range:
DC: 5–125V.
AC: 10–250V.
Output Current Rating:
Max 2 A per channel.
Max 8 A total per module.
Isolation:
Channel-to-channel isolation.
Isolation from system backplane.
Switching Frequency:
Mechanical relays; not suitable for high-speed switching.
Diagnostics and Protection:
Channel status indicators.
Module fault detection.
Programming Software: Studio 5000 Logix Designer.
Mounting Type: DIN rail.
Status Indicators:
Individual LEDs for each channel.
Module health indicator.
Environmental Ratings:
Operating Temperature: -20°C to +60°C.
Storage Temperature: -40°C to +85°C.
Relative Humidity: 5% to 95% non-condensing.
Certifications: CE, UL, cUL, RoHS.
Dimensions: Standard Compact 5000 I/O footprint.
Weight: Approx. 0.4–0.6 kg.
