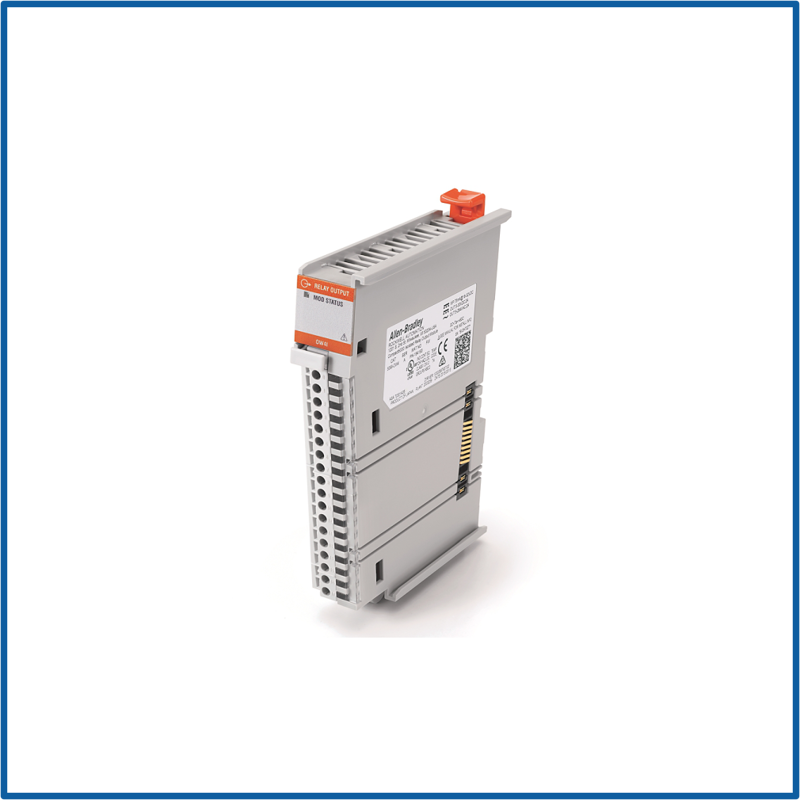

Compact 5000 Isolated Relay OutputModule
SKU: 5069-OW4I
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The 5069-OW4I is a 4-channel isolated relay output module from Rockwell Automation's Compact 5000 I/O line, intended for industrial control systems that require consistent switching of AC or DC loads with individual channel isolation.
Each output has electromechanical Form A (usually open) relay contacts, making it excellent for controlling devices such as solenoids, contactors, alarms, and pilot lights—particularly in applications requiring electrical isolation across channels.
This module is ideal for settings with diverse voltage domains or when fault containment and noise reduction are required.
It works smoothly with CompactLogix 5380 controllers and is customized using Studio 5000 Logix Designer, providing consistent performance and flexibility for distributed control architectures.
Buy currently uses Select Automation shop pricing and checkout.
Technical Specifications:
Catalog Number: 5069-OW4I.
Module Type: Isolated Relay Output.
Number of Channels: 4 individually isolated outputs.
Contact Type:
Form A (normally open) electromechanical relays.
Mechanical switching for AC/DC loads.
Output Voltage Range:
DC: 5–125V.
AC: 10–250V.
Output Current Rating:
Max 2 A per channel.
Max 8 A total per module.
Isolation:
Channel-to-channel isolation.
Isolation from system backplane.
Switching Frequency:
Low frequency (mechanical relays not suitable for high-speed switching).
Diagnostics:
Channel status indicators.
Fault detection and reporting.
Programming Software: Studio 5000 Logix Designer.
Mounting Type: DIN rail.
Status Indicators:
Individual LEDs for each channel.
Module health LED.
Environmental Ratings:
Operating Temperature: -20°C to +60°C.
Storage Temperature: -40°C to +85°C.
Relative Humidity: 5% to 95% non-condensing.
Certifications: CE, UL, cUL, RoHS.
Dimensions: Standard Compact 5000 I/O footprint.
Weight: Approx. 0.4–0.6 kg.
