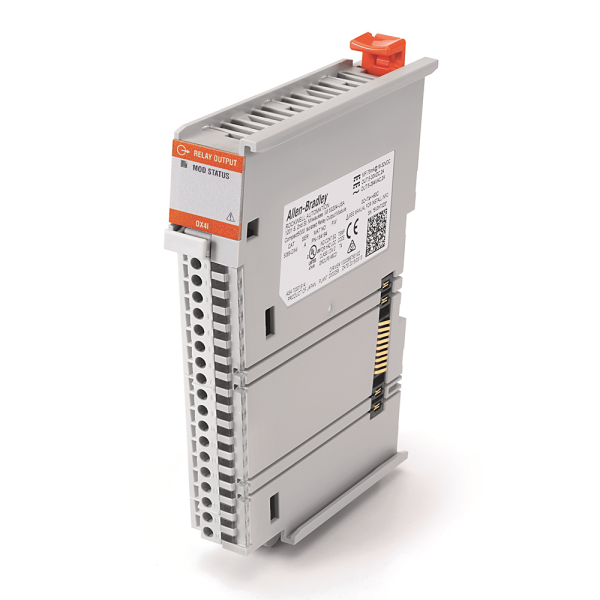

Compact 5000 Isolated Relay OutputModule
SKU: 5069-OX4I
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The 5069-OX4I is a Compact 5000 series relay output module intended for use with the CompactLogix 5380 and Compact GuardLogix 5380 controllers.
It has four individually isolated relay outputs, which are perfect for switching AC or DC loads including solenoids, contactors, and pilot lights.
Each channel is electrically separated, allowing for flexible control of mixed-voltage circuits while decreasing the possibility of cross-channel interference.
This makes it particularly useful in situations that require consistent switching of discrete devices across multiple power domains.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Module Type: Isolated Relay Output.
Channels: 4 individually isolated outputs.
Output Type: Mechanical relay (Form A, normally open).
Voltage Range:
5–125 VDC.
10–250 VAC.
Max Output Current:
2 A per channel.
8 A total per module.
Isolation:
Channel-to-channel.
Channel-to-backplane.
Switching Frequency: 1 Hz typical.
Contact Life:
100,000 operations at rated load.
Up to 10 million operations at no load.
Status Indicators: Per-channel LEDs.
Compatible Controllers: CompactLogix 5380, Compact GuardLogix 5380.
Programming Software: Studio 5000 Logix Designer.
Environmental Ratings:
Operating Temperature: –20°C to +65°C.
Storage Temperature: –40°C to +85°C.
Humidity: 5% to 95%, non-condensing.
Shock Resistance: 30g.
Vibration Resistance: 10–500 Hz, 2g.
