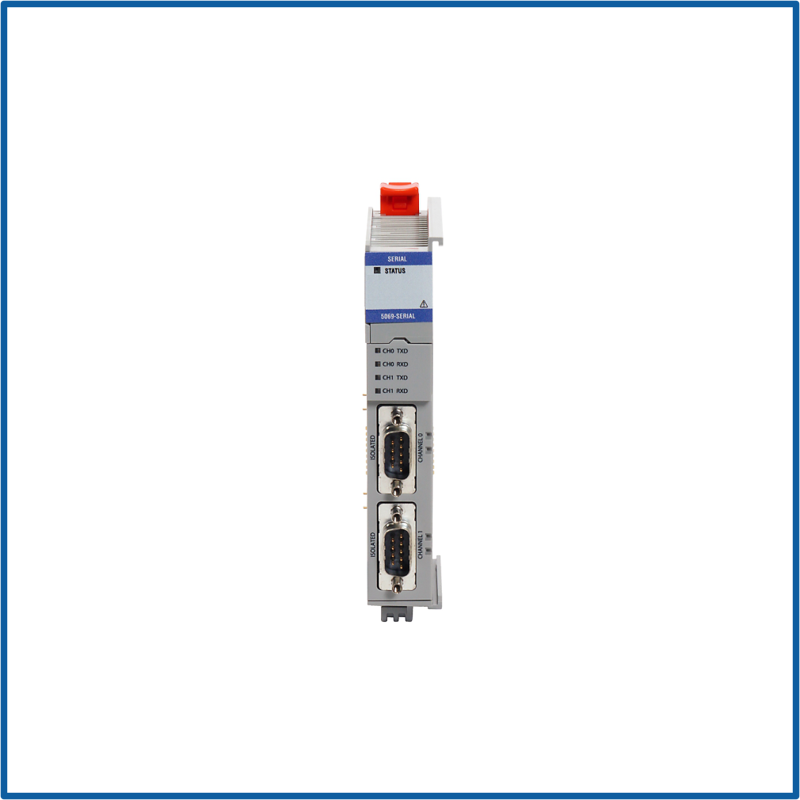

Compact 5000 Serial Interface Module
SKU: 5069-SERIAL
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The 5069-SERIAL is a versatile serial communication module from Rockwell Automation's Compact 5000 I/O line that is intended to incorporate serial devices into current control systems.
It facilitates communication via Modbus RTU, Modbus ASCII, and custom ASCII protocols and supports RS-232, RS-422, and RS-485 interfaces.
This module is perfect for connecting older equipment like as barcode scanners, printers, sensors, and drives to CompactLogix 5380 controllers, providing for smooth data interchange in hybrid automation systems.
With its numerous configuration options and diagnostic capabilities, the 5069-SERIAL bridges the gap between serial and Ethernet/IP-based designs.
Because Studio 5000 Logix Designer is used for configuration, serial connectivity may be easily implemented and managed inside your current control strategy.
Buy currently uses Select Automation shop pricing and checkout.
Technical Specifications:
Catalogue Number: 5069-SERIAL.
Module Type: Serial Communication Interface.
Supported Serial Standards:
RS-232.
RS-422.
RS-485 (2-wire and 4-wire).
Protocols Supported:
Modbus RTU (Master/Slave).
Modbus ASCII.
Custom ASCII messaging.
Number of Ports: 1 configurable serial port.
Baud Rate Range: 300 to 115,200 bps.
Data Bits: 7 or 8.
Stop Bits: 1 or 2.
Parity Options: None, Even, Odd.
Isolation:
Port-to-backplane isolation for enhanced signal integrity.
Diagnostics:
Communication status indicators.
Error counters and fault reporting.
Configuration:
Via Studio 5000 Logix Designer.
Add-On Instructions (AOIs) available for protocol handling.
Mounting Type: DIN rail.
Status Indicators:
LEDs for module health and communication activity.
Environmental Ratings:
Operating Temperature: -20°C to +60°C.
Storage Temperature: -40°C to +85°C.
Relative Humidity: 5% to 95% non-condensing.
Certifications: CE, UL, cUL, RoHS.
Dimensions: Standard Compact 5000 I/O footprint.
Weight: Approx. 0.3–0.5 kg.
