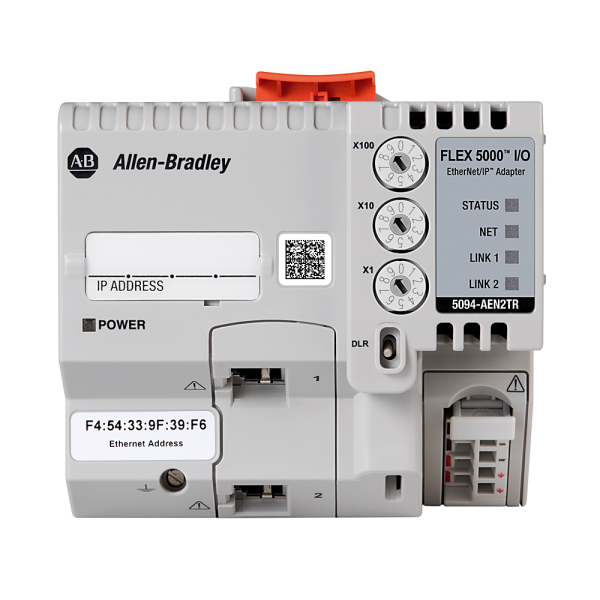

5094 Ethernet Adapter 16 Modules RJ45
SKU: 5094-AEN2TR
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The 5094-AEN2TR EtherNet/IP adapter is optimized for FLEX 5000™ I/O systems. It offers great performance.
It has two RJ45 copper ports that support linear, star, and ring topologies, allowing for versatile network configurations.
This adapter supplies system-side power to attached I/O modules and can accommodate up to 16 FLEX 5000 modules, making it perfect for distributed control applications.
Supporting Gigabit Ethernet and Device Level Ring (DLR), the 5094-AEN2TR guarantees dependable, quick communication and improved network resilience.
It conveniently attaches on a DIN rail and comes with a removable terminal block for easier wiring and maintenance.
Buy currently uses Select Automation shop pricing and checkout.
Electrical & Communication Specs:
Protocol: EtherNet/IP.
Ports: 2 × RJ45 (dual-port for daisy-chaining or ring topology).
Supported Modules: Up to 16 FLEX 5000 I/O modules.
Power Supply:
Voltage: 18–32 V DC.
Current: 1880 mA max.
Data Rate: 10/100 Mbps.
IP Addressing: Static or DHCP.
Network Topologies: Star, linear, ring.
Mechanical & Mounting:
Mounting Type: DIN rail.
Removable Terminal Block: Included.
Form Factor: Compact, modular.
Dimensions: ~110 mm (H) × 50 mm (W) × 75 mm (D).
Weight: Approx. 300 g.
Environmental & Compliance:
Operating Temperature: –20 °C to +60 °C.
Storage Temperature: –40 °C to +85 °C.
Shock Resistance: 30 g.
Certifications:
UL Listed.
CE Marked.
ATEX / IECEx Zone 2 compliant.
RoHS compliant.
Lifecycle Status: Active (as of July 20, 2025).
