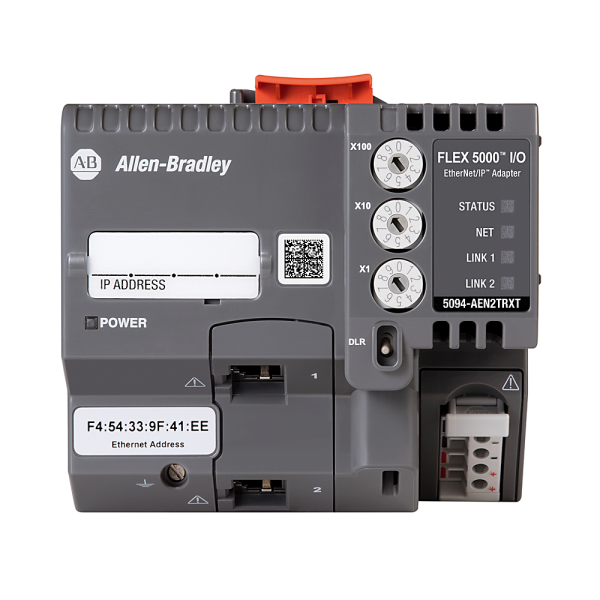

5094XT Ethernet Adapter 16 Modules RJ45
SKU: 5094-AEN2TRXT
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The 5094-AEN2TRXT is a ruggedized EtherNet/IP adapter intended for usage in extreme temperatures and demanding industrial conditions.
It is part of the 5094XT family, which provides better durability and performance for demanding applications.
Dual RJ45 ports support linear, star, and ring topologies, allowing for more versatile network configurations.
Extended Temperature Range: Designed for severe environments, such as outdoor or high-vibration installations.
Supports up to 16 FLEX 5000 modules. enables scalable I/O architecture.
DIN Rail Mounting simplifies installation and maintenance.
Device Level Ring (DLR) Support: Ensures network resilience and speedy recovery.
Lifecycle Status: Current as of July 2025.
Buy currently uses Select Automation shop pricing and checkout.
General Specifications:
Catalogue Number: 5094-AEN2TRXT.
Product Type: EtherNet/IP Adapter (XT = Extended Temperature).
Supported Modules: Up to 16 FLEX 5000™ I/O modules.
Communication Ports: 2 × RJ45 (Copper).
Network Protocol: EtherNet/IP with Device Level Ring (DLR) support.
Mounting Style: DIN rail.
Removable Terminal Block: Included for power and signal wiring.
Compatible Software: Studio 5000 Logix Designer®.
Electrical Characteristics:
Input Voltage Range: 18–32 V DC.
Max Current Draw: ~1880 mA.
Power Supply Role: Provides system-side power to connected I/O modules.
Environmental Ratings:
Operating Temperature: –40 °C to +70 °C.
Storage Temperature: –40 °C to +85 °C.
Humidity: Up to 95% non-condensing.
Shock Resistance: Rated up to 30 g.
Corrosion Resistance: ISA S71.04 G2 compliant.
Altitude Rating: Up to 2000 meters.
Hazardous Location Certification: ATEX/IECEx Zone 2 compliant.
Physical Dimensions:
Width: 94.0 mm.
Height: 92.7 mm.
Depth: 96.5 mm.
Weight: Approx. 300 g.
