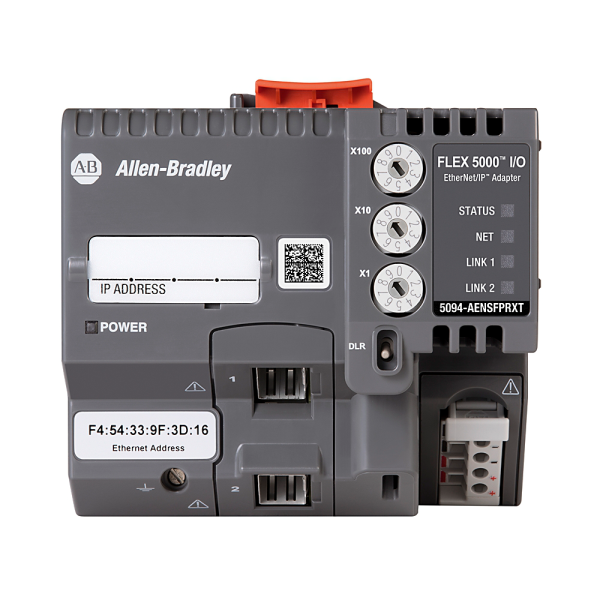

5094XT Ethernet Adapter 8 Modules SFP
SKU: 5094-AENSFPRXT
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The 5094-AENSFPRXT is a rugged and high-performance EtherNet/IP adapter from the FLEX 5000™ XT series, ideal for usage in harsh industrial applications.
It has twin SFP ports for flexible connectivity via fibre or copper transceivers and can accommodate up to eight FLEX 5000 I/O modules.
It's suitable for applications in oil and gas, mining, and outdoor installations, thanks to its enhanced temperature limits and hazardous area certification.
This adapter supports the Device Level Ring (DLR) architecture for network redundancy and interacts effortlessly with Studio 5000 Logix Designer®, making it an effective and dependable alternative for distributed control systems.
Buy currently uses Select Automation shop pricing and checkout.
Product Overview:
Catalogue Number: 5094-AENSFPRXT.
Series: FLEX 5000™ XT.
Type: Ethernet/IP Adapter with SFP (Small Form-factor Pluggable) ports.
Module Capacity: Supports up to 8 FLEX 5000 I/O modules.
Port Type: Dual SFP for fibre or copper transceivers.
Protocol Support: EtherNet/IP with Device Level Ring (DLR) redundancy.
Application: Designed for high-performance, rugged industrial environments.
Technical Specifications:
Operating Voltage: 18–32 V DC.
Max Current Draw: ~1880 mA.
Power Supply Role: Distributes power to connected I/O modules.
Mounting: DIN rail.
Removable Terminal Block: Required for wiring (sold separately).
Environmental Ratings:
Operating Temperature: –40 °C to +70 °C.
Storage Temperature: –40 °C to +85 °C.
Humidity: Up to 95% non-condensing.
Shock Resistance: Up to 30 g.
Corrosion Resistance: ISA S71.04 G2 compliant.
Altitude: Rated for up to 2000 meters.
Hazardous Location Certification: ATEX/IECEx Zone 2 compliant.
Physical Dimensions:
Width: 94 mm.
Height: 92.7 mm.
Depth: 96.5 mm.
