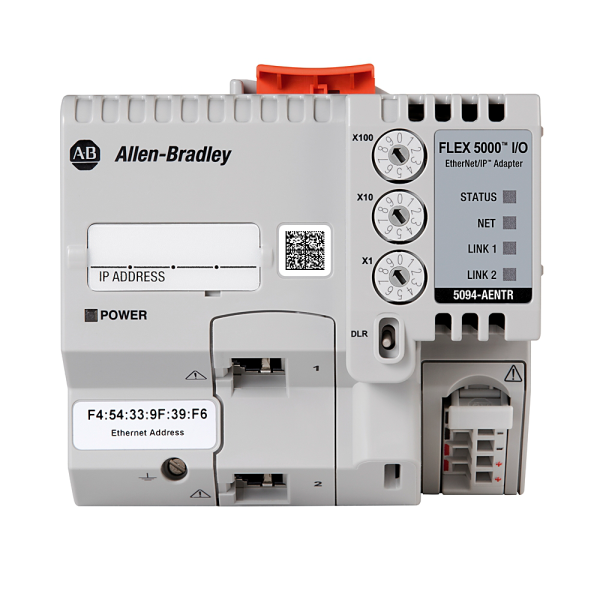

5094 Ethernet Adapter 8 Modules RJ45
SKU: 5094-AENTR
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The 5094-AENTR Modular EtherNet/IP Communication Adapter links up to 8 FLEX 5000™ I/O modules to an Ethernet network.
It has two RJ45 copper ports that allow for flexible topologies such as Device Level Ring (DLR), star, and linear layouts.
This adapter is suited for dispersed control applications that require quick, dependable data interchange and smooth integration with Logix 5000 controllers using Studio 5000 Logix Designer®.
Voltage range: 18-32 volts DC.
Current rating: 1250 mA (3200 mA inrush for 100 ms).
DIN Rail mounting with a detachable terminal block.
Copper media only; no fibre support.
Buy currently uses Select Automation shop pricing and checkout.
General Features:
Supports up to 8 FLEX 5000™ I/O modules.
Dual RJ45 copper ports for Ethernet/IP communication.
Enables Device Level Ring (DLR), star, and linear topologies.
Uses a single IP address for both ports (integrated switch).
Compatible with standard and safety I/O modules.
Electrical Specifications:
Input voltage: 18–32 V DC.
Current draw: 1250 mA max.
Inrush current: 3200 mA for 100 ms.
Power distribution: Provides system-side power to connected modules.
Environmental Ratings:
Operating temperature: -40 °C to +70 °C.
Storage temperature: -40 °C to +85 °C.
Humidity: 5% to 95% non-condensing.
Hazardous location certified: Class I, Div 2, Zone 2 (Groups A, B, C, D).
Physical Characteristics:
Mounting: DIN rail.
Dimensions: Approx. 3.65 × 3.7 × 3.8 inches.
Weight: ~400 g.
Terminal block: Removable (sold separately).
Wire size supported: 14–22 AWG copper wire.
