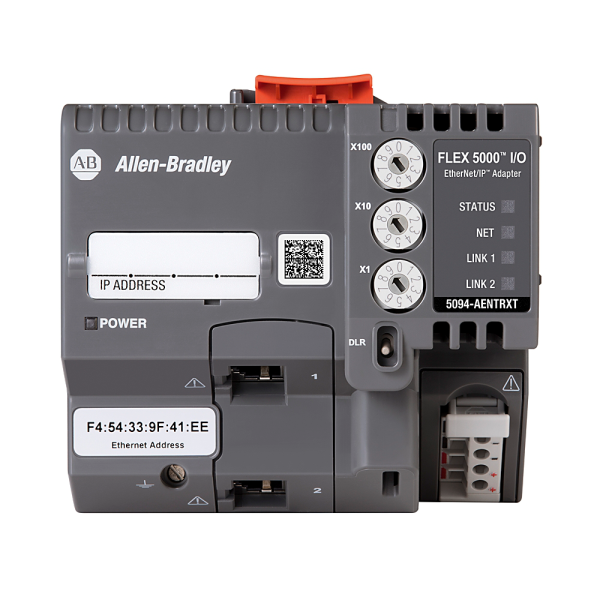

5094XT Ethernet Adapter 8 Modules RJ45
SKU: 5094-AENTRXT
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The 5094-AENTRXT is a dual-port RJ45 Ethernet adapter that supports up to 8 FLEX 5000™ I/O modules in distributed control systems.
As part of the XT (Extreme Temperature) range, it has conformal coating for increased endurance in corrosive, high-humidity, or outdoor situations.
It enables high-speed connection and customizable network topologies for industrial automation.
Mounting options include DIN rail or FLEX 5000 terminal base.
Hot-Swap Capability: Yes (RIUP: Removal and Insertion Under Power).
LED indicators display power, network status, and module health.
Buy currently uses Select Automation shop pricing and checkout.
Electrical Specifications:
Input Voltage Range: 18–32 V DC.
Nominal Current Draw: 1250 mA.
Inrush Current: 3200 mA for 100 ms.
Backplane Power Supply: 15 V DC @ 1130 mA.
Recommended Overcurrent Protection: 10–12 A @ 22.5 V DC.
Network & Communication:
Ethernet Ports: 2 × RJ45 (Copper).
Speed: 1 Gbps full duplex.
Supported Topologies:
Star.
Linear.
Device Level Ring (DLR).
Parallel Redundancy Protocol (PRP).
Protocol: EtherNet/IP.
Configuration Software: Studio 5000 Logix Designer®.
Module Support:
Max I/O Modules: 8 FLEX 5000 modules.
Hot-Swap Capability: Yes (RIUP – Removal and Insertion Under Power).
Mounting: DIN rail.
Environmental Ratings:
Operating Temperature: –40 °C to +70 °C.
Storage Temperature: –40 °C to +85 °C.
Humidity: Up to 95% non-condensing.
Conformal Coating: XT-rated for harsh environments.
Certifications: UL, CE, ATEX, IECEx (check product label for specifics).
Physical & Mechanical:
Form Factor: FLEX 5000 XT.
Dimensions & Weight: Varies by mounting base.
LED Indicators: Power, network status, module health.
