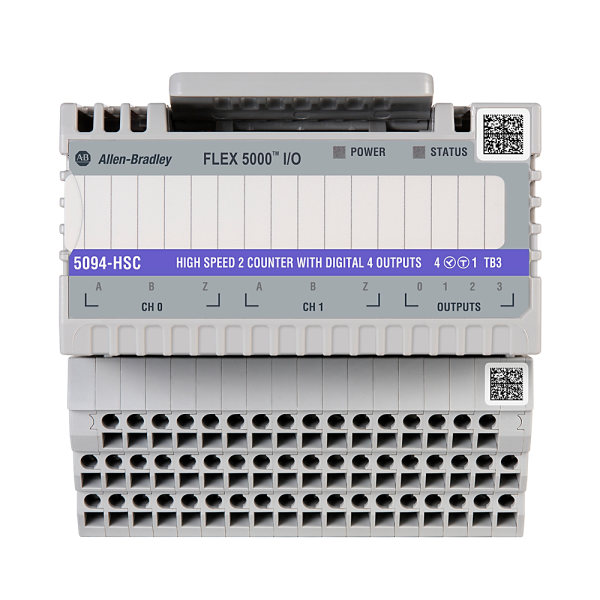

5094 High Speed Counter
SKU: 5094-HSC
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The 5094-HSC is a specialized I/O module for counting high-speed pulses from devices like as encoders, limit switches, and pulse generators.
It's perfect for real-time applications like precise position monitoring, speed measurement, and event counting.
This module integrates effortlessly into FLEX 5000 systems and communicates with Logix 5000 controllers using the Producer-Consumer model.
Pulse Counting: Detects incoming pulses with excellent accuracy.
Event Triggering activates outputs based on count thresholds.
Real-Time Feedback: Sends count data to controllers so they can take instant action.
Flexible wire: Allows for numerous wire arrangements in industrial settings.
Buy currently uses Select Automation shop pricing and checkout.
Electrical & Functional Specs:
Input Channels: 6 differential inputs.
Nominal Voltage: 24 V DC.
Voltage Range: 18 V DC (min) to 32 V DC (max).
Output Rating:
3 A total per module.
1 A max per output channel.
Functionality:
Counts high-speed pulses from encoders, switches, and sensors.
Triggers outputs based on count thresholds.
Sends real-time count data to Logix controllers.
Environmental Ratings:
Operating Temperature: –40 °C to +70 °C.
Storage Temperature: –40 °C to +85 °C.
Humidity: Up to 95% non-condensing.
Physical Characteristics:
Dimensions:
Width: 94 mm.
Height: 54 mm.
Depth: 87 mm.
Mounting: DIN rail or panel mount within FLEX 5000 system.
System Integration:
Uses Producer-Consumer communication model.
Configured via Studio 5000 Logix Designer®.
