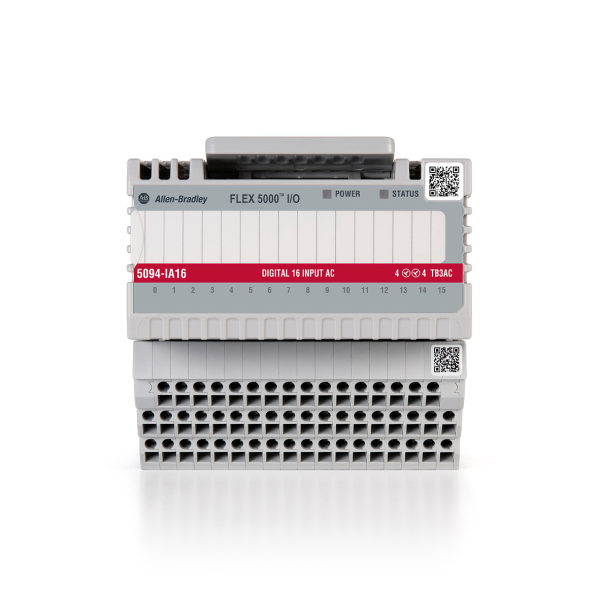

5094 Digital 16 Input 120 VAC
SKU: 5094-IA16
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The 5094-IA16 is a 16-point digital input module that detects ON/OFF transitions from field devices powered by 120 VAC.
It turns these transitions into logic-level signals that may be used with a Logix 5000 controller.
The FLEX 5000™ I/O platform, which includes this module, is distinguished for its rugged design, high-speed Ethernet/IP connectivity, and modular flexibility.
Inputs: 16 digital inputs.
Voltage range: 79–132 VAC (nominal: 120 VAC).
The input type is AC voltage detection.
Response time is around 8 milliseconds for ON/OFF.
Isolation voltage is 250 V continuous.
Mounting: DIN rail with a detachable terminal block.
Diagnostics include channel-level fault detection and status LEDs.
Environmental Rating: Operates under tough industrial circumstances (-20°C to +60°C).
Buy currently uses Select Automation shop pricing and checkout.
Electrical Specifications:
16 digital input channels.
Input type: AC voltage detection.
Nominal voltage: 120 VAC.
Voltage range: 79–132 VAC.
Input current: ~6 mA @ 120 VAC.
Input delay: ~8 ms ON and OFF.
Isolation voltage: 250 V continuous.
Power consumption: Low (module draws minimal power).
Physical & Mounting:
Mounting: DIN rail.
Terminal block: Removable (sold separately).
Compact FLEX 5000™ form factor.
Lightweight and modular design.
Environmental Ratings:
Operating temperature: –20 °C to +60 °C.
Storage temperature: –40 °C to +85 °C.
Humidity: Up to 95% non-condensing.
Corrosion resistance: ISA S71.04 G2 compliant.
Certifications & Compliance:
UL Listed.
CE Marked.
ATEX & IECEx certified (Class I, Div 2, Zone 2).
KC, RCM, CCC approvals.
Certified through May 2025.
Functional Highlights:
Converts AC ON/OFF transitions into logic-level signals.
Channel-level diagnostics and LED indicators.
Seamless integration with Logix 5000 controllers.
Configurable via Studio 5000 Logix Designer®.
Supports high-speed EtherNet/IP communication.
