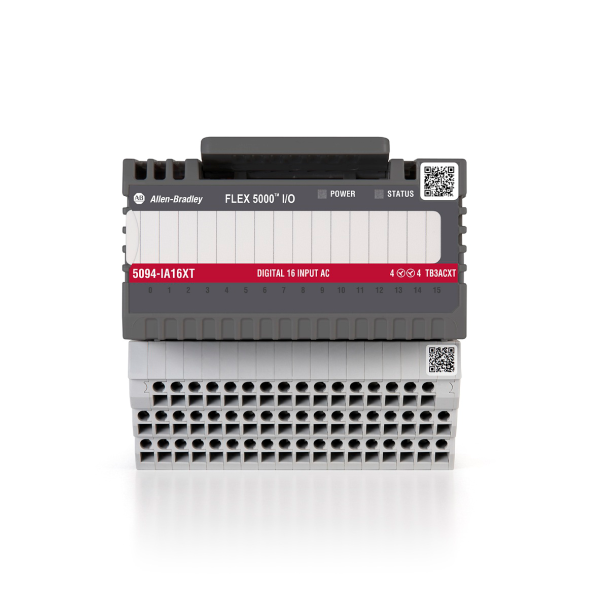

5094XT Digital 16 Input 120 VAC
SKU: 5094-IA16XT
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The 5094-IA16XT is a 16-point digital input module that runs on 120 VAC and is designed to withstand severe temperatures and tough industrial environments.
The XT (eXtended Temperature) range of the FLEX 5000™ platform provides increased durability and reliability.
Input channels include 16 digital AC inputs.
Voltage range: 79 to 132 VAC.
Nominal Voltage: 120 VAC.
Input current: around 6 mA at 120 VAC.
Input delay: ~8 ms for ON/OFF.
250 V constant is the isolation voltage.
Mounting: DIN rail.
Terminal Block is removable (sold separately).
Buy currently uses Select Automation shop pricing and checkout.
Electrical Specifications:
Input Type: Digital AC input.
Number of Channels: 16 inputs.
Nominal Voltage: 120 VAC.
Voltage Range: 79–132 VAC.
Input Current: ~6 mA @ 120 VAC.
Input Delay: ~8 ms ON and OFF.
Isolation Voltage: 250 V continuous.
Power Supply: Field-side power via SA+/– terminals.
Physical & Mechanical:
Mounting: DIN rail.
Terminal Block: Removable (sold separately).
Form Factor: FLEX 5000™ XT compact modular design.
Wiring: Terminals 0–15 for input devices; AC neutral terminals internally connected.
Environmental Ratings:
Operating Temperature: –40 °C to +70 °C.
Storage Temperature: –40 °C to +85 °C.
Humidity: Up to 95% non-condensing.
Corrosion Resistance: ISA S71.04 G3 compliant.
Shock/Vibration: Enhanced industrial tolerance.
Certifications & Compliance:
UL Listed, CE, ATEX, IECEx, RCM, CCC, KC.
Hazardous Location: Class I, Div 2, Zone 2.
Certification Validity: As of May 2025.
Functional Highlights:
Converts ON/OFF transitions from field devices into logic-level signals.
Uses Producer/Consumer communication model for efficient data exchange.
Compatible with Logix 5000® controllers.
Configurable via Studio 5000 Logix Designer®.
Diagnostic LEDs for channel-level status.
