5094 Digital 16 Input
SKU: 5094-IB16
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:

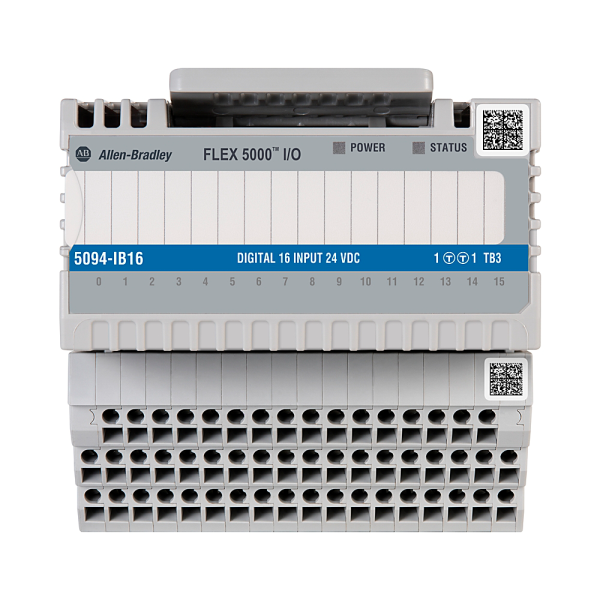

The 5094-IB16 is a 16-point sinking digital input module intended for use in distributed control systems.
It identifies input transitions from field devices including switches, sensors, and relays and converts them to logic-level data for Logix 5000 controllers.
The FLEX 5000™ platform features versatility, high-speed EtherNet/IP connectivity, and robust environmental characteristics.
Detects ON/OFF transitions in field devices.
The Producer-Consumer concept is used to ensure efficient EtherNet/IP connectivity.
Configurable with Studio 5000 Logix Designer®.
LED indicators display channel status and module health.
Aids in diagnosis and defect detection.
Buy currently uses Select Automation shop pricing and checkout.
Electrical:
Input Type: Digital sinking.
Number of Inputs: 16 channels.
Voltage Range: 10–32 V DC.
Nominal Voltage: 24 V DC.
Input Current: 2–8 mA per channel.
Isolation: Channel-to-backplane isolation.
Environmental:
Operating Temperature: –40 °C to +70 °C.
Storage Temperature: –40 °C to +85 °C.
Humidity: Up to 95% non-condensing.
Corrosion Resistance: ISA S71.04 G3 compliant.
Certifications: UL, CE, ATEX/IECEx Zone 2.
Physical:
Dimensions:
Width: 94 mm.
Height: 54 mm.
Depth: 87 mm.
Mounting: Chassis or DIN rail via FLEX 5000 terminal base.
Wiring: Shielded twisted pair recommended for noise immunity.
