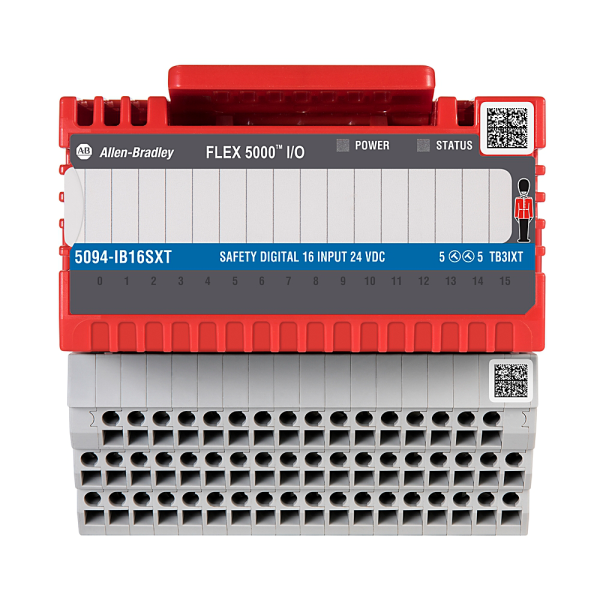

5094XT Safety Digital 16 Input
SKU: 5094-IB16SXT
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The 5094-IB16SXT is a 16-channel sinking digital safety input module with an XT conformal coating, intended for use in hazardous or corrosive settings.
It's part of Rockwell Automation's FLEX 5000™ I/O platform and offers functional safety applications up to SIL 3, PLe, Cat. 4. When linked with GuardLogix 5380 or 5580 controllers.
It detects input transitions (ON/OFF state changes) from field devices such as sensors and switches.
The Producer/Consumer communication model is used to ensure efficient EtherNet/IP data exchange.
LED indicators display channel status, module health, and power diagnostics.
Hot-swap capability (RIUP)—replace modules without shutting down the system.
Buy currently uses Select Automation shop pricing and checkout.
Electrical Specifications:
Input Type: Digital sinking.
Number of Inputs: 16 channels.
Voltage Range: 10–32 V DC.
Nominal Voltage: 24 V DC.
Input Current: ~6 mA ON at 24 V DC.
Backplane Power Consumption: 15 V DC @ 100 ma.
Isolation: 250 VAC basic between module and field.
Safety Ratings:
Functional Safety Certification:
SIL 3 (IEC 61508).
PLe, Category 4 (ISO 13849-1).
Controller Compatibility: GuardLogix 5380 and 5580.
Configuration Modes: Single-channel and dual-channel safety logic.
Diagnostics: Input state, open/short detection, cross-channel fault detection.
Environmental Ratings:
Operating Temperature: –40 °C to +70 °C.
Storage Temperature: –40 °C to +85 °C.
Humidity: 5% to 95% non-condensing.
Conformal Coating: XT-rated for G1–G3 corrosive environments.
Hazardous Location Certification: ATEX, IECEx Zone 2/Div 2.
Physical Characteristics:
Dimensions: Approx. 94 × 54 × 87 mm.
Mounting: DIN rail or FLEX 5000 terminal base.
Hot-Swap Capability: RIUP (Removal and Insertion Under Power) supported.
Weight: Not explicitly listed, like other FLEX 5000 modules (~200–250 g).
