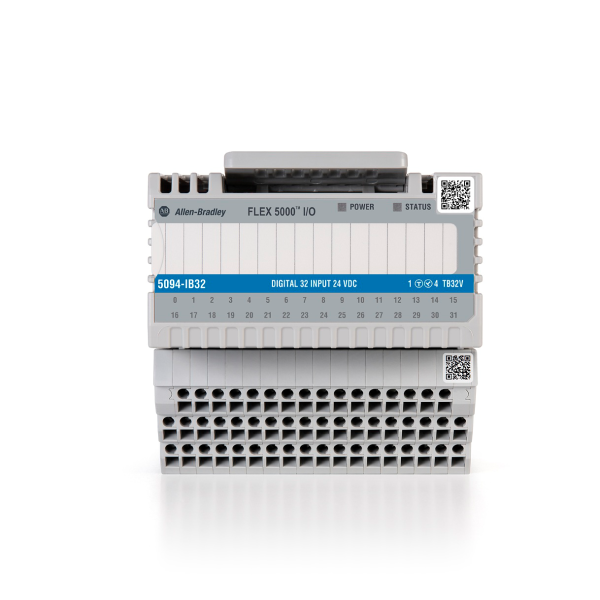

5094 Digital 32 Input 24 VDC
SKU: 5094-IB32
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The 5094-IB32 is a 32-point sinking digital input module that monitors the status of field devices such switches, sensors, and discrete input sources.
It detects transitions from OFF to ON or ON to OFF and converts them into logic-level signals for processing by a Logix 5000™ controller.
Key features:
Sinking input, which takes current from a field device.
Voltage range: 10-32 V DC (nominal: 24 V DC).
Channels have 32 independently connected inputs.
The Producer/Consumer architecture enables efficient data flow across EtherNet/IP™.
Configuration is managed using Studio 5000 Logix Designer®.
Compatibility: Compatible with selected Logix 5000 controllers.
Buy currently uses Select Automation shop pricing and checkout.
Electrical Specifications:
Input Type: Digital sinking.
Number of Inputs: 32 channels.
Voltage Range: 10–32 V DC.
Nominal Voltage: 24 V DC.
Input Current: 2–8 mA per channel.
Isolation: Channel-to-backplane isolation.
Field Power: Supplied via SA+/SA– terminals.
Environmental Ratings:
Operating Temperature: –40 °C to +70 °C.
Storage Temperature: –40 °C to +85 °C.
Humidity: 5% to 95% non-condensing.
Corrosion Resistance: ISA S71.04 G3 compliant.
Hazardous Location Certification: ATEX/IECEx Zone 2.
Physical Characteristics:
Dimensions: Approx. 94 mm (W) × 54 mm (H) × 87 mm (D).
Mounting: DIN rail or FLEX 5000 terminal base.
Wiring: Individual input wiring to terminals 0–31.
Weight: Like other FLEX 5000 modules (~200–250 g).
Functional Features:
Detects ON/OFF transitions from field devices like sensors and switches.
Converts input state changes to logic-level signals for Logix 5000 controllers.
Uses Producer/Consumer model for efficient EtherNet/IP communication.
Configurable via Studio 5000 Logix Designer®.
LED indicators for channel status and module health.
