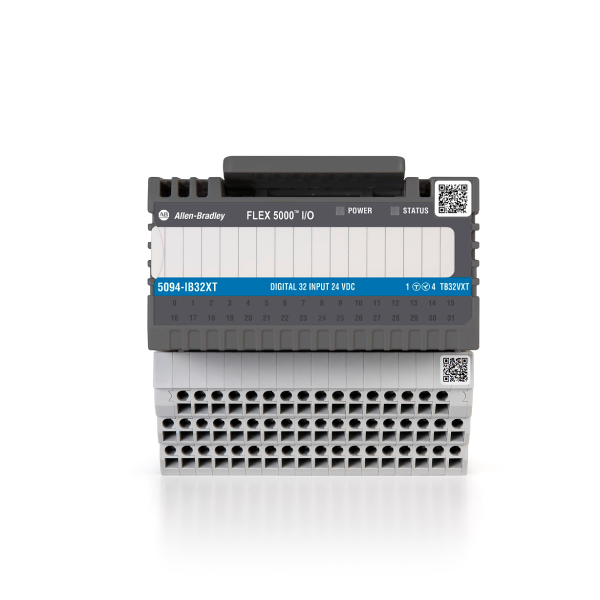

5094XT Digital 32 Input 24 VDC
SKU: 5094-IB32XT
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The 5094-IB32XT is a 32-point sinking digital input module intended for use in distributed control systems.
It's part of the XT (Extreme Temperature) range, which means it has conformal coating for better protection against moisture, dust, and corrosive gasses, making it perfect for severe or outdoor applications.
The module translates ON/OFF transitions from field devices into logic-level signals for Logix 5000™ controllers.
Detects input changes from sensors, switches, and other discrete components.
The Producer/Consumer model optimizes EtherNet/IP™ connectivity.
Configurable with Studio 5000 Logix Designer®.
LED indicators display channel status and diagnostics.
Compatible with the 5094-MBXT chassis base and RTB3XT terminal blocks.
The 5094-STB shield bar for grounding is a suggested accessory.
Buy currently uses Select Automation shop pricing and checkout.
Electrical Specifications:
32 digital input channels (sinking type).
Nominal input voltage: 24 VDC.
Input voltage range: 10–32 VDC.
Input current: ~2.4 mA per channel @ 24 VDC.
Field power supplied via SA+/SA– terminals.
Isolation: 250 VAC (field to backplane).
Environmental Ratings:
Operating temperature: –40 °C to +70 °C.
Storage temperature: –40 °C to +85 °C.
Humidity: 5% to 95% non-condensing.
Shock: 30 g operational, 50 g non-operational.
Vibration: 5 g @ 10–500 Hz.
Conformal coating: Yes (XT-rated for corrosive environments).
Physical Characteristics:
Dimensions: Approx. 94 mm (H) × 54 mm (W) × 87 mm (D).
Mounting: DIN rail or FLEX 5000 terminal base.
Hot-swap support: Yes (RIUP — Removal and Insertion Under Power).
LED indicators: Channel status + module diagnostics.
Functional Features:
Compatible with Studio 5000 Logix Designer®.
Uses EtherNet/IP™ Producer/Consumer communication model.
Supports 5094-RTB3XT removable terminal block.
Works with 5094-MBXT module base.
Optional 5094-STB shield bar for grounding.
