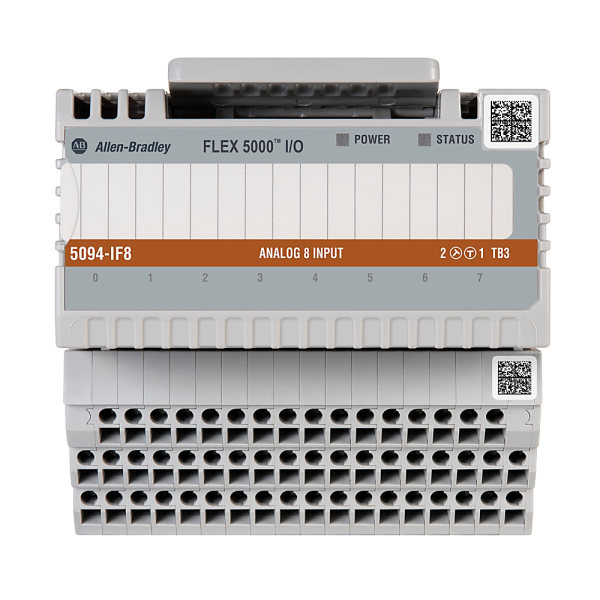

5094 Analog 8 Input
SKU: 5094-IF8
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The 5094-IF8 is an 8-channel analogue input module for the Allen-Bradley FLEX 5000™ I/O platform (Rockwell Automation).
It enables high-performance, adaptable analogue signal capture in industrial control systems.
This module accepts voltage and current input signals, allowing users to tune each channel independently for different ranges such as ±10 V, 0-10 V, 0-5 V, 0-20 mA, or 4-20 mA.
With 16-bit resolution, it provides precise and dependable measurements that are perfect for process control, monitoring, and automation applications.
The 5094-IF8 effortlessly interfaces with EtherNet/IP™ networks, allowing for quick data transmission and diagnostics.
It enables RIUP (Removal and Insertion Under Power), which facilitates maintenance without affecting operations.
Its compact form and strong environmental ratings make it ideal for demanding industrial applications.
Buy currently uses Select Automation shop pricing and checkout.
Electrical Specifications:
Input Channels: 8 single-ended analogue inputs.
Signal Types Supported:
Voltage: ±10 V, 0–10 V, 0–5 V.
Current: 0–20 mA, 4–20 mA.
Resolution: 16-bit.
Input Type: Non-isolated, single-ended.
Field Power Supply: 24 V DC via SA+/SA– terminals.
Backplane Power Consumption: ~3.5 W.
Environmental Ratings:
Operating Temperature: –40 °C to +70 °C.
Storage Temperature: –40 °C to +85 °C.
Humidity: 5% to 95% non-condensing.
Corrosion Resistance: ISA S71.04 G3 compliant.
Certifications: UL, CE, ATEX, IECEx.
Physical Characteristics:
Dimensions: Approx. 94 mm (W) × 54 mm (H) × 87 mm (D).
Mounting: DIN rail or FLEX 5000 terminal base.
Hot-Swap Support: Yes (RIUP — Removal and Insertion Under Power).
Recommended Accessories:
5094-STB shield bar for grounding.
5094-TB3 or TB3T terminal base.
Functional Features:
Configurable per channel for voltage or current input.
Uses EtherNet/IP™ Producer/Consumer communication model.
Integrated with Studio 5000 Logix Designer®.
LED indicators for module and channel status.
Diagnostic support for signal integrity and fault detection.
