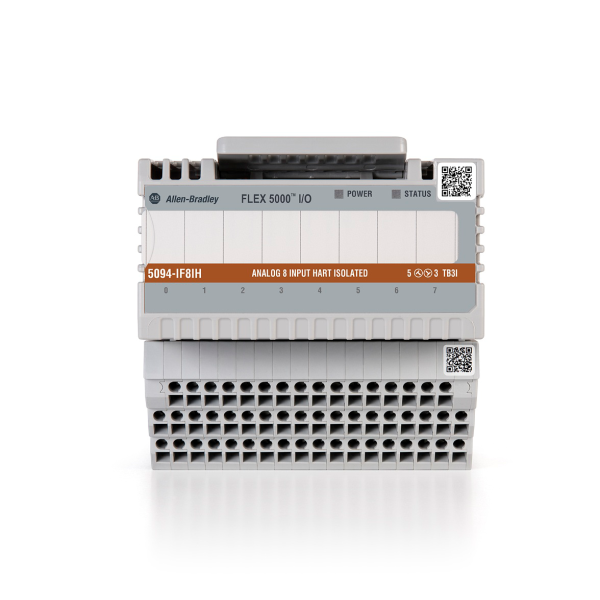

5094 Analog 8 Input Isolated HART
SKU: 5094-IF8IH
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The 5094-IF8IH is an 8-channel analogue input module that supports current, voltage, and HART-enabled devices.
Each channel is separately isolated, allowing for more signal kinds and better noise protection.
It is perfect for process automation systems that require accurate analogue readings and HART connectivity.
Key features:
Input Types Supported:
4-20 mA current.
The voltage ranges from 0 to 10 V.
HART-enabled signals.
Channel Isolation:
Each input channel is galvanically separated, which minimizes crosstalk and improves signal integrity.
HART Protocol Support:
Enables digital communication with smart field devices via analog wiring.
Enables asset management and device diagnostics.
Flexible configuration:
There are multiple ranges for each input type.
Configurable with Studio 5000 Logix Designer®.
Communication Models:
Uses the Producer/Consumer model over EtherNet/IP for efficient data sharing.
Buy currently uses Select Automation shop pricing and checkout.
Functional Capabilities:
Number of Channels: 8 analogue inputs.
Input Types:
Current: 4–20 mA.
Voltage: 0–10 V.
HART-enabled signals.
Channel Isolation: Each input is galvanically isolated.
Resolution: 16-bit analogue resolution.
Communication Protocol: EtherNet/IP using Producer/Consumer model.
HART Support: Enables digital communication with smart field devices over analogue wiring.
Electrical Specifications:
Operating Voltage: 24 V DC.
Sensor Power: Supplied via terminal base.
Field-Side Power Terminals: SA+ and SA–.
Shielding Requirement: Requires 5094-STB shield bar for HART wiring integrity.
Physical Characteristics:
Dimensions:
Width: 94 mm.
Height: 87 mm.
Depth: 54 mm.
Mounting: DIN rail.
Terminal Base Compatibility: 5094-TB3I, TB3IS, TB3IXT, TB3ISXT.
Wiring: Use shielded twisted-pair cable (e.g., Belden 8761).
Environmental Ratings:
Operating Temperature: –40 °C to +70 °C.
Storage Temperature: –40 °C to +85 °C.
Humidity: Up to 95% non-condensing.
Corrosion Resistance: ISA S71.04 G3 compliant.
Hazardous Location Certification: ATEX/IECEx Zone 2.
