      5094XT Analog 8 Input Isolated HART

      SKU: 5094-IF8IHXT

      Out of stock

      Availability: Out of Stock

      Short Description
      Description: The 5094-IF8IHXT is an 8-channel analogue input module intended for rugged industrial applications. Each channel is separately isolated and can handle current, voltage, and HART-enabled signals, making it perfect for process automation systems that require high precision and smart device integration. Signal types include 4-20 mA current, 0-10 V voltage, and HART communication. Galvanic separation between channels ensures noise immunity and safety. HART support enables digital connection with smart field devices via analogue wiring. 16-bit analogue resolution allows for precise measurement. Communication: EtherNet/IP with a Producer/Consumer architecture for efficient data exchange. Configuration is fully supported by Studio 5000 Logix Designer®.

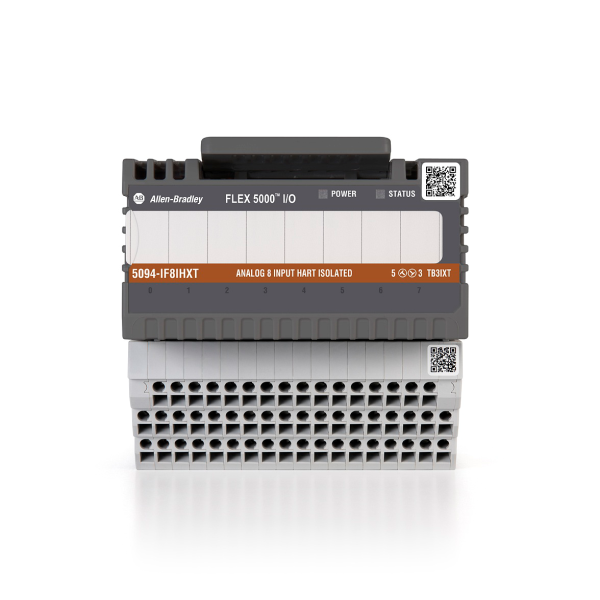

      5094-IF8IHXT
      Alternative image 1
      Electrical & Functional Specs: 8 individually isolated analogue input channels. Supports current (4–20 mA), voltage (0–10 V), and HART-enabled signals. 16-bit resolution for high-precision measurements. Input impedance: Voltage: >10 MΩ. Current: 250 Ω. Update rate: 10 ms per channel. Accuracy: ±0.1% of full scale. Galvanic isolation between channels and backplane. HART communication over analogue wiring for smart device integration. Environmental Ratings: Operating temperature: –40 °C to +70 °C. Storage temperature: –40 °C to +85 °C. Humidity: 5% to 95% non-condensing. Corrosion resistance: ISA S71.04 G3 compliant. Shock and vibration: IEC 60068-2-27 / IEC 60068-2-6 compliant. Certified for hazardous locations: ATEX/IECEx Zone 2. Installation & Wiring: Mounts on DIN rail via FLEX 5000 base. Requires 5094-STB shield bar for proper HART wiring. Field-side power: 24V DC via SA+/– terminals. Recommended wiring: Shielded twisted pair (e.g., Belden 8761). Configurable via Studio 5000 Logix Designer.
