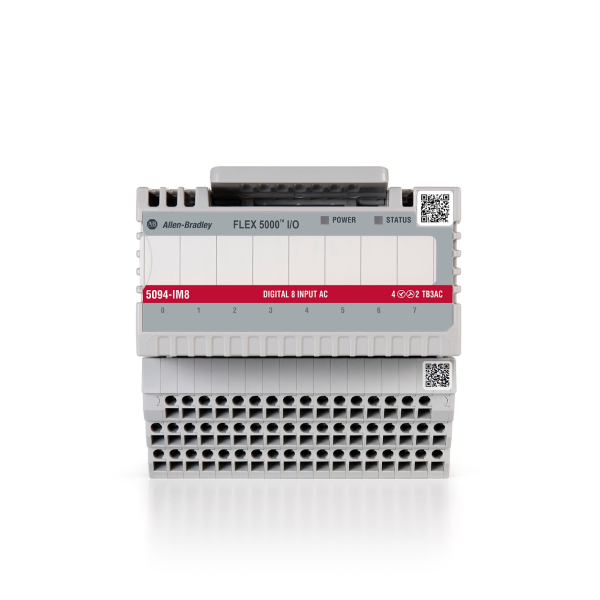

5094 Digital 8 Input 240 VAC
SKU: 5094-IM8
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The 5094-IM8 is an 8-channel digital input module from Rockwell Automation's FLEX 5000™ I/O family, developed for monitoring high-voltage AC signals in industrial automation systems.
It offers dependable input detection for switches, sensors, and relays in harsh settings when operating at 240 VAC.
This module is suited for applications that require strong signal isolation, fast data exchange, and customizable setup.
It supports RIUP (Removal and Insertion Under Power), which allows for maintenance without system downtime.
Integrated diagnostics and LED indicators make troubleshooting easier and increase system visibility.
The 5094-IM8, designed for EtherNet/IP™ networks, seamlessly integrates with Logix 5000 controllers and Studio 5000 software, making it an excellent solution for scalable, distributed control systems.
Buy currently uses Select Automation shop pricing and checkout.
Electrical Specifications:
Input Type: Digital input (AC voltage sensing).
Number of Inputs: 8 channels.
Voltage Range: 159–264 VAC.
Nominal Voltage: 240 VAC.
Frequency Range: 47–63 Hz.
Input Current: Typically, ~2.5 mA per channel.
Isolation: 250 VAC field-to-backplane isolation.
Field Power Supply: Supplied via SA+/SA– terminals.
Environmental Ratings:
Operating Temperature: –40 °C to +70 °C.
Storage Temperature: –40 °C to +85 °C.
Humidity: 5% to 95% non-condensing.
Corrosion Resistance: ISA S71.04 G3 compliant.
Hazardous Location Certification: ATEX, IECEx Zone 2/Div 2.
Physical Characteristics:
Dimensions: Approx. 94 mm (W) × 54 mm (H) × 87 mm (D).
Mounting: DIN rail or FLEX 5000 terminal base.
Hot-Swap Capability: Yes (RIUP — Removal and Insertion Under Power).
LED Indicators: Channel status and module diagnostics.
Functional Features:
Detects ON/OFF transitions from high-voltage AC field devices.
Uses EtherNet/IP™ Producer/Consumer communication model.
Configurable via Studio 5000 Logix Designer®.
Supports diagnostics for signal integrity and fault detection.
Compatible with FLEX 5000 accessories like shield bars and terminal blocks.
