5094XT Digital 8 Input 240 VAC

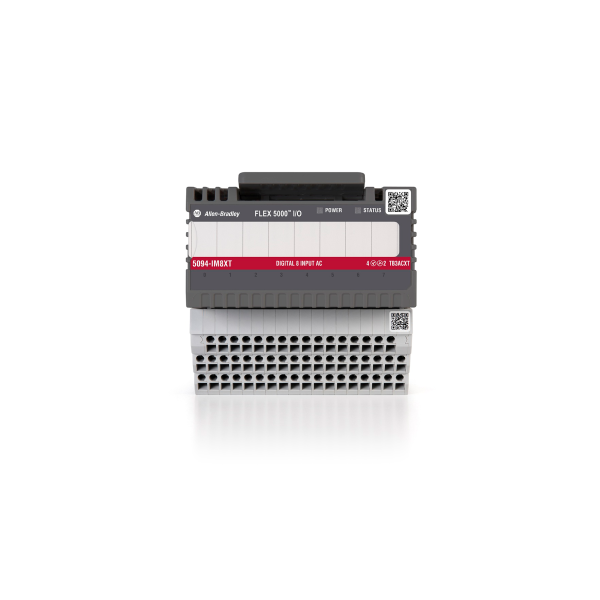

Description: One of the FLEX 5000TM I/O family's high-performance digital input modules, the 5094-IM8XT, is made to manage eight digital input channels at 240 VAC. The product is designed for XT (Extended Temperature) conditions, making it appropriate for industrial applications that require dependability, flexibility, and smooth connection with EtherNet/IP™ networks. Extended Temperature Range: Operates reliably from –40 °C to +70 °C, perfect for harsh or outdoor conditions. High Voltage Input: Supports 240 VAC digital inputs, with a voltage range between 159–264 VAC at 47–63 Hz. 8 Input Channels: Monitors up to 8 discrete input signals, detecting transitions from ON to OFF and vice versa. Reinforced Isolation: Provides 250 VAC continuous isolation between field and system sides for enhanced safety. Intelligent Communication: Uses the Producer/Consumer model for efficient data exchange, reducing latency and improving responsiveness. Studio 5000 Integration: Seamlessly integrates with Logix 5000 controllers via Studio 5000 Logix Designer, simplifying configuration and diagnostics. Power Efficiency: Low power consumption with a maximum power dissipation of 2.8 W and thermal dissipation of 9.55 BTU/hr. Modular Design: Part of the FLEX 5000 I/O system, allowing scalable and flexible deployment across various applications. Certifications: Complies with UL, CE, and hazardous location approvals, ensuring global usability and safety compliance.
